Product Description
Product Details
Like real rock bouncers, the Axial® RBX10™ Ryft™ 1/10 4WD RTR is built to run at high speeds over rugged, rocky trails. Exclusive Spektrum™ technologies such as Smart telemetry and AVC® traction control enable all drivers to enjoy unstoppable performance.
Key Features
- Solid axles front and rear with universal axle joints
- Robust tube chassis design
- Strong powertrain with 4S-capable brushless motor
- Licensed Raceline wheels and Interco TSL (Three Stage Lug) Bogger tires
- Ready to Run completion level requires no assembly, and comes with everything required other than a battery and charger
In The Box
- (1) Axial® RBX10™ Ryft™ 1/10 4WD RTR
- (1) Spektrum™ DX3™ 3-Channel 2.4GHz DSMR® Radio Transmitter
- (1) Spektrum™ SR6100AT 6-Channel DSMR® AVC/Telemetry Receiver
- (1) Spektrum™ Firma™ 130A Smart ESC
- (1) 2200Kv Brushless Motor
- (1) Product Manual
Needed to Complete
- Battery and charger
Introduction
Axial® introduces another first with the 1/10 scale RBX10™ Ryft™ 4WD. This ready-to-run vehicle lets any RC driver experience the thrills of rock bouncer off-road action. Full-size rock bouncers refuse to stop — or even back down on the throttle — when facing steep climbs and massive rocks. So does the RBX10™ Ryft™ 4WD. This ground-up new Axial® vehicle handles lots of abuse and loads of power!
Features
- Solid axles front and rear with universal axle joints
- Robust tube chassis design
- Strong powertrain with 4S-capable brushless motor
- Full-time 4WD transmission
- Licensed Raceline wheels and Interco TSL (Three Stage Lug) Bogger tires
- Long travel front and rear shocks
- Waterproof 15kg servo
Overview
The RBX10™ Ryft™ 4WD's robust, custom tube chassis is engineered from a high-strength composite plastic that withstands the hard knocks of RC off-roading — even while moving at the high speeds produced by a strong powertrain featuring a 4S-capable, 2200Kv brushless motor. Both the front and rear axles boast a durable one-piece, molded plastic, solid axle design and metal differential cover. Licensed Interco TSL Bogger tires on Raceline wheels, aided by long travel front and rear shocks, do their part to tame wild off-road tracks. These features, along with a full-time 4WD transmission, make the RBX10™ Ryft™ a fun vehicle to send over the trails at full throttle.
Exclusive Spektrum™ technologies, such as Smart telemetry and AVC® traction control, help even new RC drivers enjoy unstoppable performance from the RBX10™ Ryft™ 4WD. Its Spektrum™ DX3™ radio uses DSMR® technology for superior range, response, and interference resistance. The radio is also fully compatible with the Smart telemetry potential of the vehicle's Spektrum™ Firma™ 130A Smart ESC. When using a Spektrum™ Smart LiPo battery, you'll stay aware of on-board battery capacity with only a glance at the transmitter's handy voltage level indicator. When the voltage gets low, an alarm will sound.
The DX3™ radio and SR6100AT receiver also support the on-demand traction control of Spektrum™ AVC® (Active Vehicle Control®) technology — included here for the first time in an Axial® RTR vehicle. With an AVC® system, you can dial in extra stability as needed when climbing hills or launching ledges without backing off the power. You have full-throttle freedom over rough terrain, slick surfaces and loose dirt!
The Axial® RBX10™ Ryft™ 4WD is ideal for beginner to intermediate RC enthusiasts who are interested in the rock bouncing style of off-road driving over trails, dirt, gravel, rocks and more. It's available with a striking orange or black factory-applied finish and requires nothing except a battery and charger.
SPEKTRUM™ DX3™ 2.4GHz DSMR® TRANSMITTER
The included Spektrum™ DX3™ radio features exclusive DSMR® technology for superior range, response, and interference resistance. It's also fully compatible with the Smart telemetry potential of the vehicle's installed Spektrum™ Firma™ 130A Smart ESC. Use a Spektrum™ Smart LiPo battery and you can follow its capacity at a glance on the DX3 transmitter's voltage level indicator. When the battery level gets low, an alarm will sound.
SPEKTRUM™ FIRMA™ 130A SMART ESC
The feature-packed, waterproof Firma™ 130A Smart ESC delivers power and intelligence all-in-one — no additional vehicle modules or links required. Compatible with 2S to 4S LiPo input, this brushless ESC gives your RBX10™ Ryft™ the ultimate drive while feeding important telemetry data straight to your DX3™ transmitter in real time.
SPEKTRUM™ SR6100AT DSMR® AVC®/TELEMETRY RECEIVER
Built around frequency-agile DSMR® technology, the Spektrum™ SR6100AT 6-channel receiver delivers superb range and response. It also features patented Spektrum AVC® (Active Vehicle Control) and full-range telemetry capabilities.
AVC® (ACTIVE VEHICLE CONTROL®)
The DX3™ radio system supports the on-demand traction control of Spektrum™ AVC® (Active Vehicle Control®) technology. With an AVC® system, you can dial in extra stability as needed to carve corners or nail jumps without backing off the power. You have full-throttle freedom over rough terrain, slick surfaces and loose dirt!

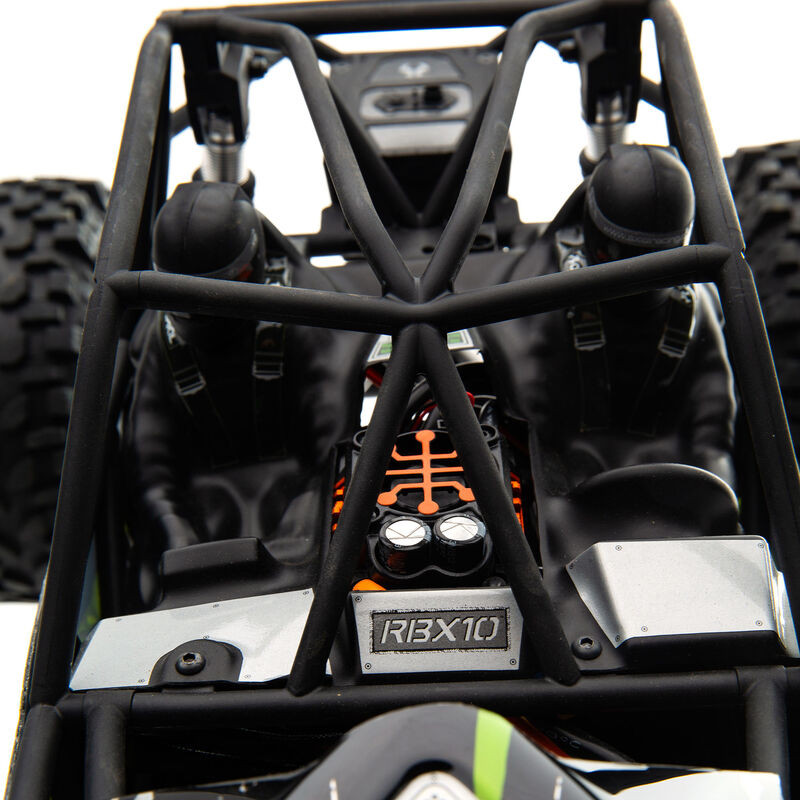

CUSTOM TUBE CHASSIS
The Axial® RBX10™ Ryft™ was designed and styled with the life-size rock bouncers in mind. Its proven, high-strength composite plastic is engineered to withstand the hard knocks of rock bouncing.

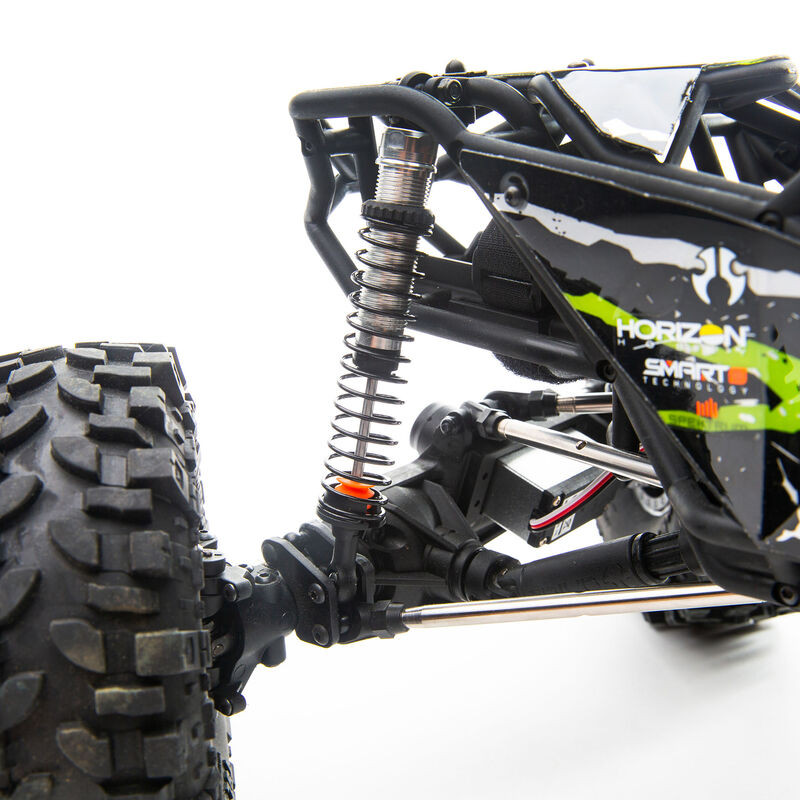

FRONT AND REAR SOLID AXLES
The RBX10™ Ryft™ 4WD is engineered to carry a lot of power over punishing off-road tracks — as evidenced by the durable one-piece, molded plastic, solid axle design of its front and rear axles and the metal differential cover.

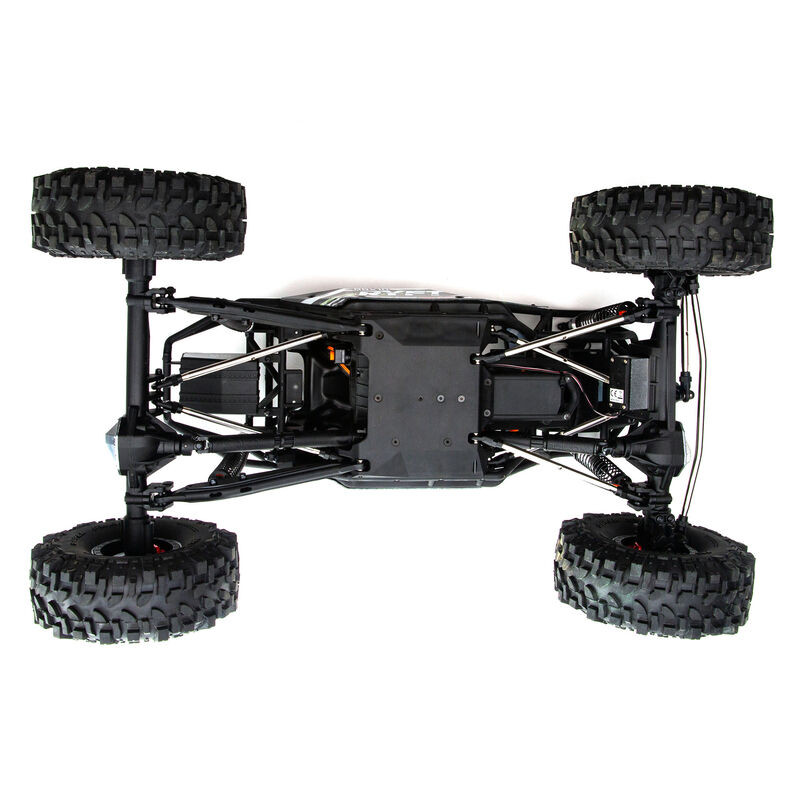

4-LINK SUSPENSION
The suspension geometry uses a 4-link design which is optimized to reduce axle steer and to provide the proper anti-squat and roll characteristics. The 4-link system also aids against suspension wrap-up in high-power applications.
Product Specifications
Specs
| Approximate Assembly Time | No assembly required |
| Ball Bearings | Full set |
| Battery | Sold Separately |
| Battery Input Lead | IC5 |
| Body | Screen printed with applied decals |
| Brakes | Integral with ESC |
| Bushing Material | Metal |
| Charger | Sold Separately |
| Chassis | Injection molded plastic |
| Completion Level | Ready-To-Run |
| Differential | Bevel gear |
| Drivetrain | 4WD |
| Drive Type | Forward/Brake/Reverse |
| Front Track | 12.75" (323.8mm) |
| Power Type | Electric |
| Gear Pitch | 32-pitch |
| Ground Clearance | 3.25" (82.5mm) |
| Motor Size | 3660, 2200Kv |
| Motor Type | Brushless - Sensorless |
| Pinion | 17T |
| Product Height | 8.75" (222 mm) |
| Product Length | 21.5" (546 mm) |
| Product Weight | 7.26lbs (3.29kg) |
| Product Width | 12.75" (324 mm) |
| Radio | Included |
| Rear Track | 12.75" (323.8mm) |
| Receiver | Included |
| Scale | 1/10 |
| Servos | Included |
| Shock Type | Oil-filled, Front 5.11 in (130mm), Rear 5.70 in (145mm) |
| Speed Control | Included |
| Spur Gear | 53T |
| Suspension | Solid axle 4-link |
| Technology | AVC |
| Tire Tread | Interco TSL Bogger |
| Tire Type | Off-road |
| Vehicle Type | Rock Racer |
| Water-Resistant | Yes |
| Wheelbase | 15.25" (387.35mm) |
| Wheel Color | Black |
| Wheel Type | Raceline Monster |
| Wheel Width | 1.6 in (40.64mm) |
