Product Description
The legendary 5IVE-T returns in its most electrifying form yet. The all-new 5IVE-TE 3.0 unleashes the first-ever Spektrum 12S power system, delivering 50+ mph speeds through massive 8.5” tires. It’s the largest, fastest, and most powerful 5IVE-T to date.

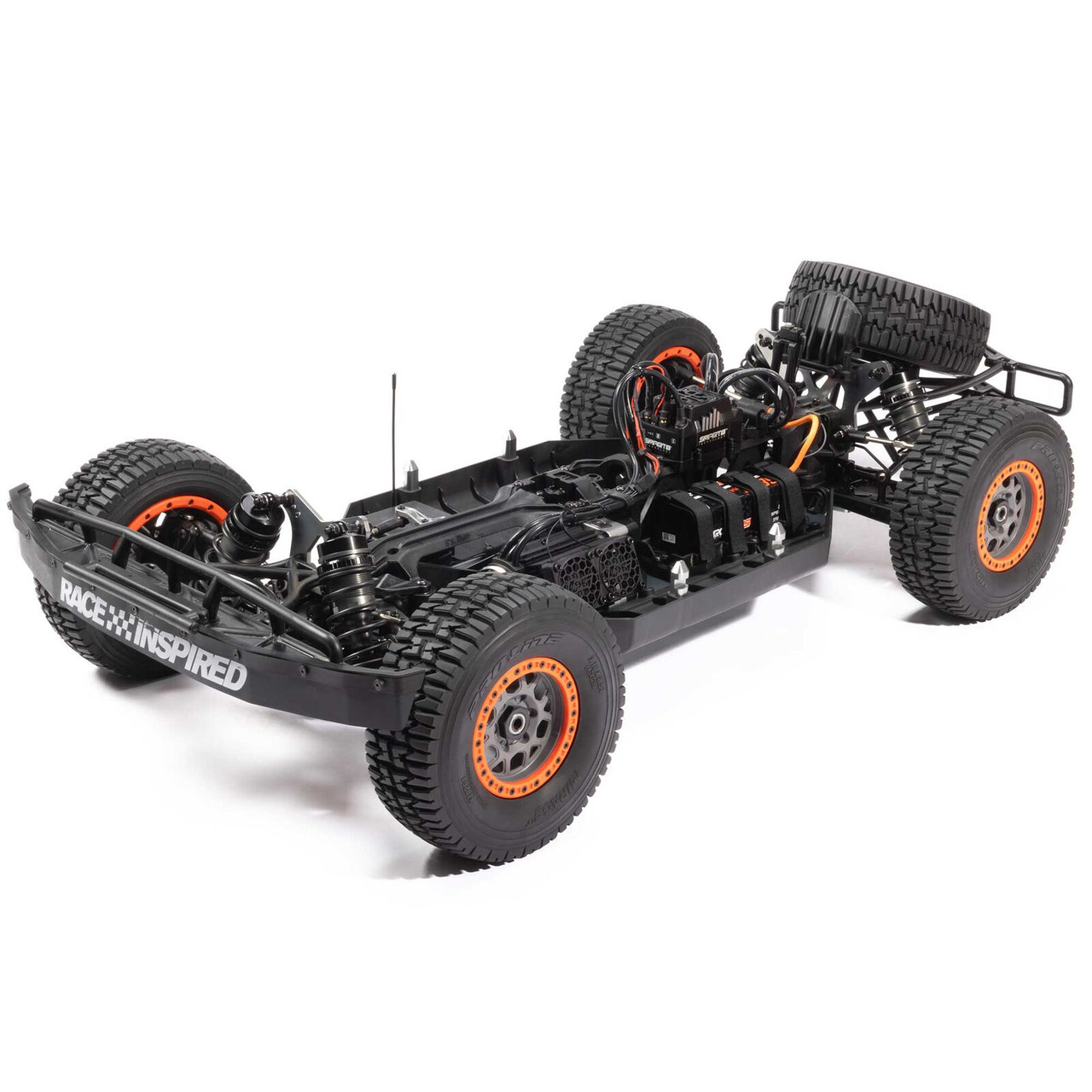

1/5 5IVE-TE 3.0 Electric 4WD Desert Truck RTR Overview
When Losi introduced the 5IVE-T in 2011, it revolutionized large-scale RC by giving enthusiasts what they didn't even know they wanted: a 4x4 large-scale truck built with the same legendary engineering DNA as the dominant 1/8-scale 8IGHT platform. Easy to work on, powerful, and proven, the 5IVE-T immediately set the benchmark for large-scale performance. Now, over a decade later, Losi raises that benchmark to unprecedented heights with the all-new 5IVE-TE 3.0.
The 5IVE-TE 3.0 is built around one astonishing centerpiece, the new 12S Spektrum power system. This is the most powerful factory-installed system Spektrum has ever created for a surface vehicle. The massive 560Kv 70120 brushless motor combines with a purpose-built 250-amp Smart ESC to deliver blistering 50+ mph speeds on 12S LiPo power. Dual 40mm fans cool the motor and an aluminum heatsink manage the incredible 50.4 volts of raw power. For a more comfortable experience, simply run 8S batteries for thrilling 35+ mph performance.
The 5IVE-TE 3.0 rides on visually striking, officially licensed KMC KM549 wheels that showcase modern, scale-correct proportions. Innovative Pro-Line Racing Pro-Loc bead lock system technology makes tire changes effortless and saves you money in the long term, as you only need to replace tires, not entire wheel-and-tire combinations. Wrapped around these wheels are massive 8.5-inch Pro-Line Mirage TT tires featuring an aggressive, realistic tread design with desert truck-style sidewall ribs for exceptional support and control across varied terrain.
To handle the punishment that 12S power and aggressive driving deliver, Losi engineered an entirely new body design. Unlike traditional polycarbonate bodies, the 5IVE-TE 3.0 features injection-molded polypropylene panels, which are the same ultra-durable material used on Losi's Promoto-MX and Sprint Car platforms. These six body panels flex to absorb impacts, maintain uniform thickness to eliminate weak spots, and make replacement far more manageable and affordable.
A longer wheelbase maintains the massive wheels, tires, and body in perfect visual proportion, while also dramatically improving straight-line stability at speed. The drivetrain enhances strength, efficiency, and driveshaft durability. Optimized gearing, featuring a new 43/12 ring and pinion with a 67-tooth spur, transforms how this beast accelerates and performs with its increased size and tire diameter.
The suspension receives equally impressive upgrades. New 32mm big-bore shocks handle significantly more oil volume for improved damping performance under the weight and forces of the larger platform. Tapered pistons increase pack while creating a more controlled, quicker rebound for superior traction. Redesigned front and rear suspension arms feature material added around shock mounting locations for uniform thickness and enhanced durability. Additionally, corrected shock geometry optimizes shock angles from the tower to the arm.
An all-new easy-access center differential mount simplifies maintenance. Spektrum's new metal-top large-scale servo delivers an astounding 1,000 oz/in of torque, keeping this massive truck pointed precisely where you want it. The metal top case keeps gears perfectly aligned while acting as a heatsink to draw heat away from the servo motor, enhancing both performance and longevity.
The included Spektrum DX3 Smart transmitter meets the needs of both newcomers and experienced large-scale enthusiasts. Its throttle limiting function allows novice drivers to restrict the top speed to 50% or 75% until they're ready to experience the 5IVE-TE 3.0's full potential. When using Smart batteries, the transmitter's battery level indicator shows real-time capacity, so you'll always know when it's time to swap in a fresh pack. The SR6200A DSMR receiver includes AVC (Active Vehicle Control) technology to increase stability on challenging terrain, while Smart Technology compatibility provides real-time telemetry data.
The Losi 5IVE-TE 3.0 is ready to dominate right out of the box. Add your choice of 8S or 12S battery packs, pick a compatible charger, and prepare to experience the largest, fastest, and most powerful 5IVE-T to date.
- Spektrum's first-ever 12S power system delivers 50+ mph speeds (35+ mph on 8S)
- Massive 8.5” Pro-Line Mirage TT tires on officially licensed KMC wheels with Pro-Loc technology
- Ultra-durable injection-molded polypropylene body panels in a six-piece design
- All-new straightened drivetrain with optimized gearing and easy-access center differential
- New massive 32mm big-bore shocks with tapered pistons
1/5 5IVE-TE 3.0 Electric 4WD Desert Truck RTR Features
- Spektrum Firma 250A Smart brushless ESC (6S-12S capable)
- Spektrum Firma 560Kv 70120 brushless motor with 8mm shaft
- Dual 50mm cooling fans with aluminum motor heatsink
- 1,000 oz/in metal-top, 15T large scale steering servo
- Officially licensed KMC KM549 wheels with Pro-Line Pro-Loc bead lock system
- Massive 8.5” Pro-Line Mirage TT tires with desert truck sidewall ribs
- Injection-molded polypropylene body panels (6-piece design)
- Longer wheelbase for improved stability and scale proportions
- All-new straightened center drivetrain for maximum efficiency
- Easy-access center differential mount design
- Optimized gearing: 43/12 ring and pinion with 67T spur
- New 32mm big-bore shocks with tapered pistons
- Redesigned suspension arms with reinforced shock mounting locations
- Spektrum SR6200A 6-channel DSMR receiver with AVC technology
- Spektrum DX3 Smart DSMR transmitter with throttle limiting
- Smart battery telemetry on transmitter display
- 1/5 scale 4WD drivetrain
- Ready to run, only batteries and charger required
5IVE-T DNA
The Losi 5IVE-TE 3.0 is based on the DNA of the renowned 1/5-scale gas-powered 5IVE-T, which has become a benchmark in the large-scale RC community. Its design and engineering DNA are rooted in the company's successful 1/8-scale and short course platforms. The 5IVE-TE 3.0 builds on this DNA with the first-ever purpose-built electric 5IVE-T platform.

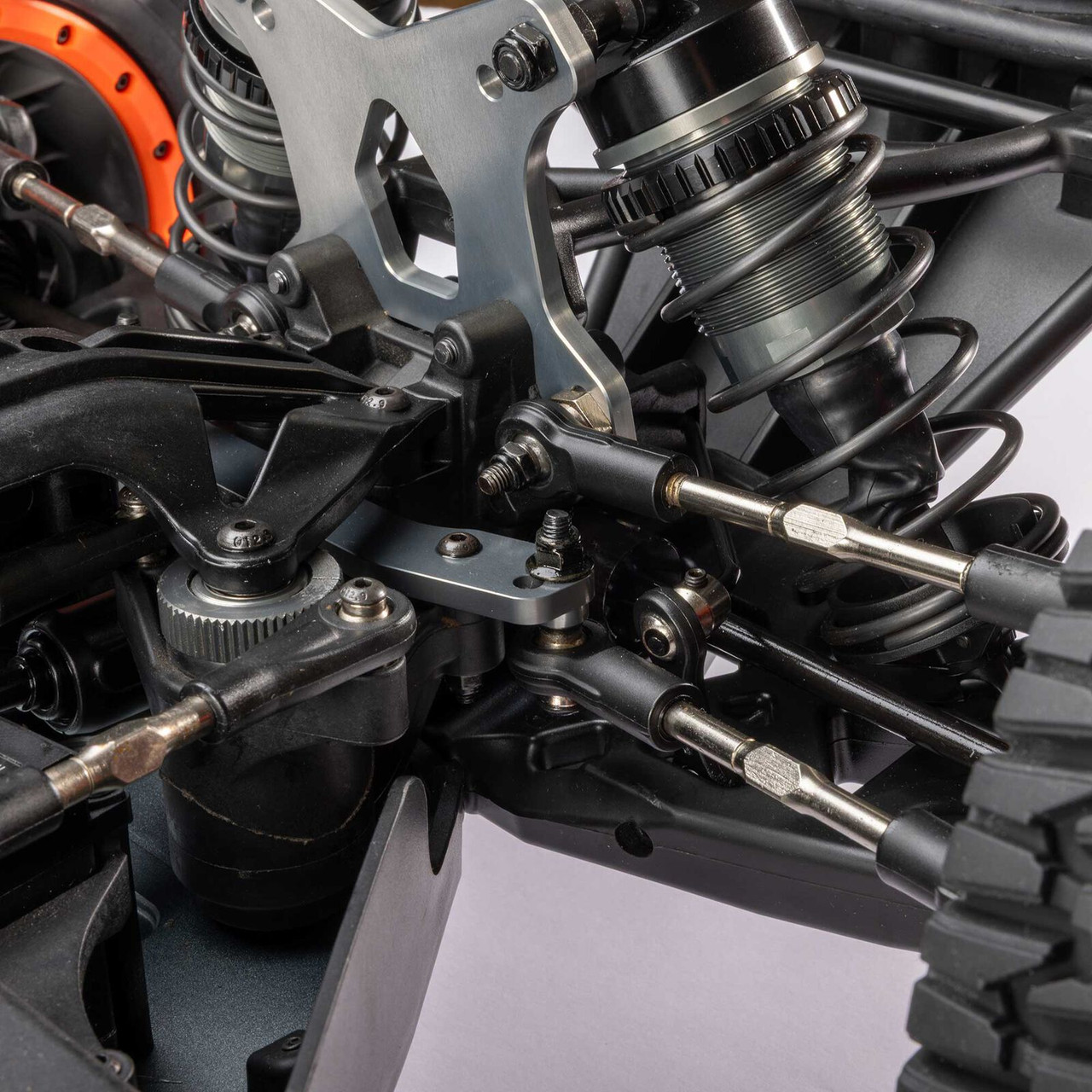

1/5-Scale Metal Top Hi Torque 15T Servo
Designed to handle extreme stress with superior performance in mind, the new SPMSS1000MT metal top servo is keeping the 5IVE-TE pointed in the right direction. The 1000 oz/in hi torque metal top servo is more than just your standard large-scale servo. The metal top case not only helps keep all the gears aligned but also acts as a heat sink, drawing heat away from the servo motor to enhance performance and durability.

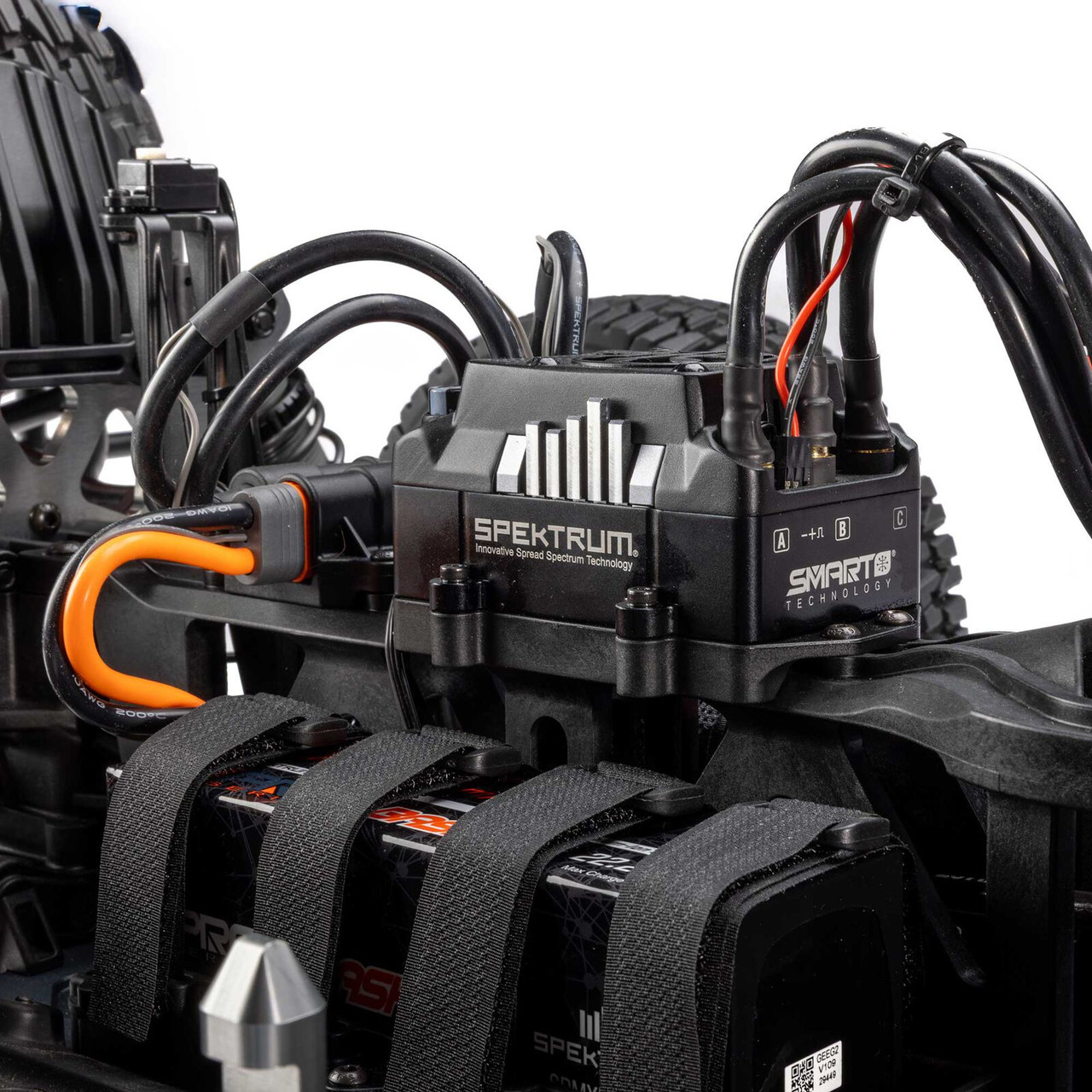

Spektrum Firma 12S 250A Brushless Smart ESC
This new 12S 250A ESC is the highest-powered offering to date from the Spektrum Firma lineup of ESCs. This ESC is designed for large-scale, high-power applications featuring Spektrum's SMART Technology.
Spektrum Firma 560kv 70120 Brushless Motor
The Spektrum Firma 560kv 70120 motor is a high-power, large-scale sensorless brushless motor. The 70mm diameter and 120mm length is the largest motor Losi has ever put into a surface vehicle. This 12S-capable motor is intended for serious, high-performance applications like the 5IVE-TE 3.0.
Dual Losi 50mm Cooling Fans and Heatsink
50.4 volts of power means cooling is essential! The motor is encapsulated by an aluminum heat sink that mounts two high-volume fans to ensure the motor temperature stays in the optimum range.
Spektrum SR6200A DSMR 6-Channel AVC Surface Receiver
Built around frequency-agile DSMR technology, the Spektrum SR6200A 6-channel DSMR receiver delivers superb range and response along with unbeatable signal security in a compact, easy-to-install package. AVC (Active Vehicle Control) technology increases your stability on tough terrain. Compatible with innovative Smart Technology, the SR6200A receiver also provides real-time telemetry data when used with a Smart ESC and Smart battery.

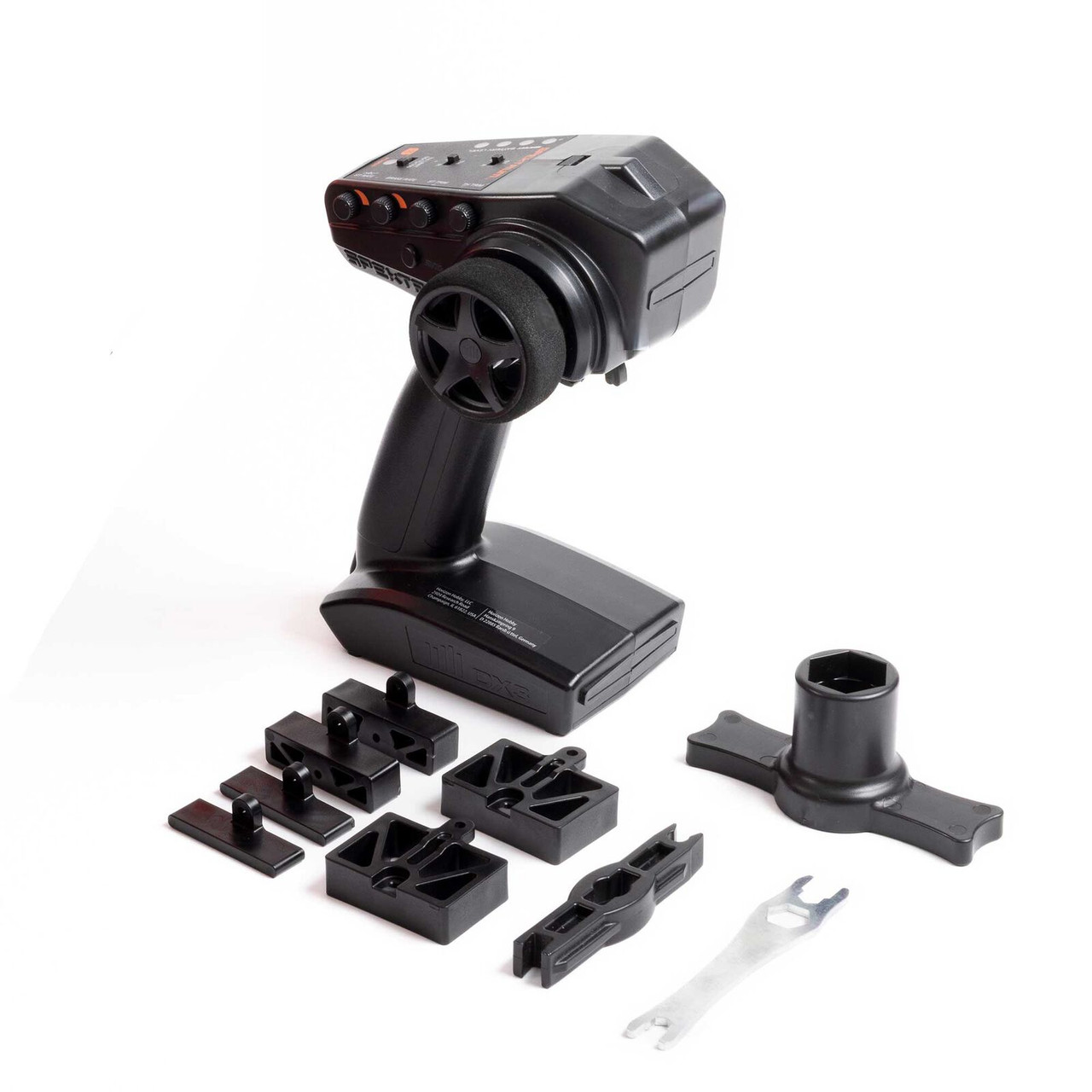

Spektrum DX3 Smart 3-Channel Transmitter
The throttle limiting function on the included Spektrum DX3 2.4GHz transmitter allows novice users to limit the truck's top speed to 50% or 75% of its full potential until they're ready to unleash its full potential. Using a Smart battery, you can monitor the available capacity on the transmitter's Smart battery level indicator.
Ultra Durable Injection-Molded Body Panels
The Losi 5IVE-TE 3.0's massive size and power mean that the body shell takes a serious beating during aggressive driving and rollovers. The new injection-molded body panels flex and absorb impacts, making them highly durable. The injection-molded bodies also maintain a uniform thickness, increasing their strength by eliminating thin spots that can occur in a vacuum forming process.
Straightened Center Drivetrain
The 5IVE-TE 3.0 has an all-new, straightened center drivetrain to optimize strength and efficiency. The straightened drivetrain is a proven design that eliminates compound angles within the drivetrain, significantly improving driveshaft durability.

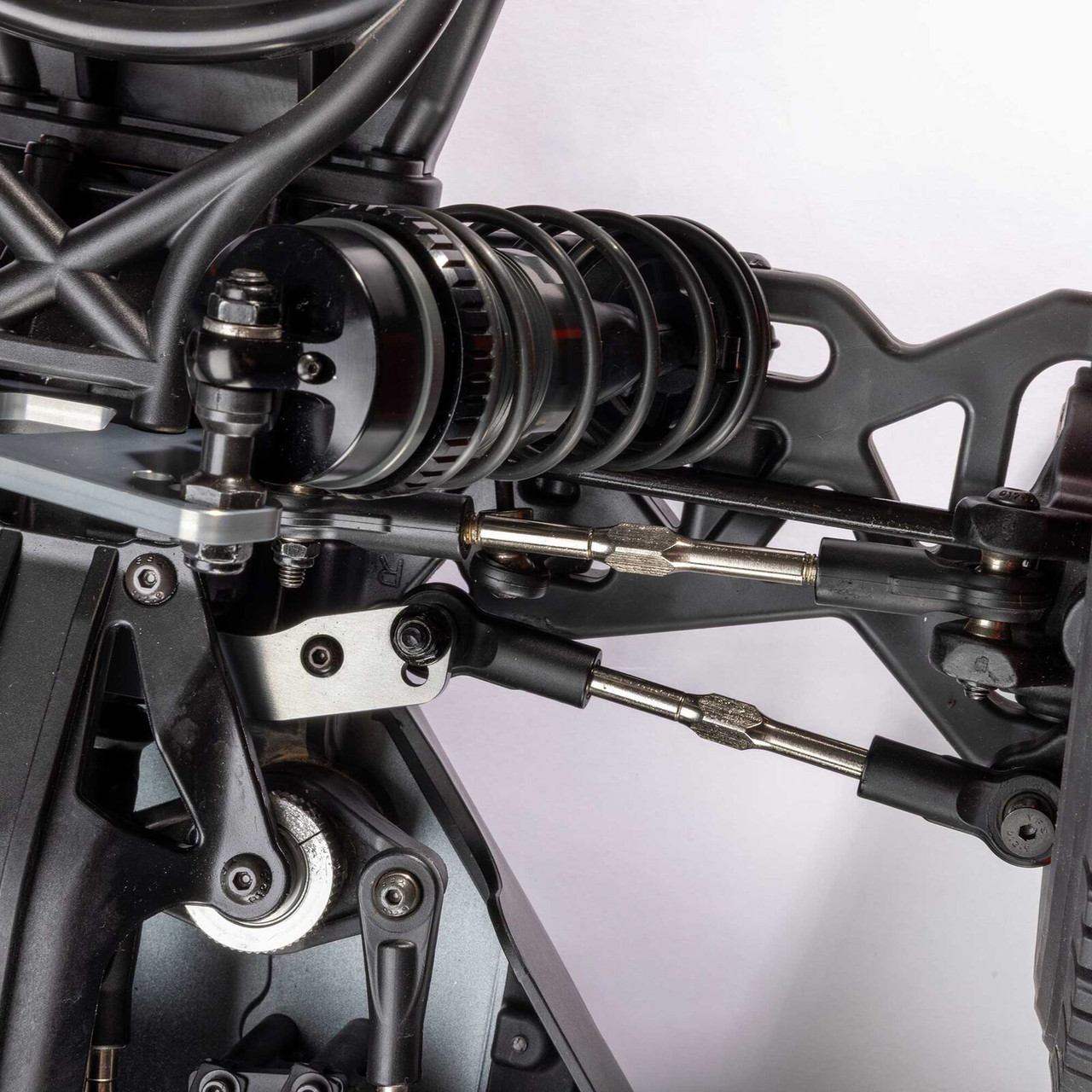

New Massive 32mm Big Bore Shocks
The 32mm Big Bore Shocks have a larger diameter than the original 5IVE-T shocks, allowing for more oil volume and improved damping. The new, larger Big Bore shocks increase the fluid volume by an incredible 78% over the original 5IVE-T shocks. The tapered piston design helps to increase the pack while creating a more controlled, faster rebound for improved overall traction.
Easy Access Center Diff Mount
A new easy-access center diff mount simplifies the removal and maintenance of the center differential. The new design allows access to the center differential by unbloting 6 screws and removing the top plate assembly.
Officially Licensed KMC KM549 Wheels
KMC is a globally recognized brand known for its stylish and rugged off-road wheels. Their innovative designs aim to be both visually appealing and highly functional. The 5IVE-TE 3.0 features officially licensed KMC KM549 Wheels with Pro-Line Pro-Loc technology.
New Suspension Arms
New front and rear suspension arms feature added material around the lower shock mounting locations, providing uniform arm thickness for improved durability. Adjustments to the shock geometry correct the shock angles from the tower to the arm with the new, larger 32mm Big-Bore shocks.
Optimized Gearing for Larger Size
Optimizing gearing on the 5IVE-TE 3.0 was a crucial part of the development process. The right gear ratio can significantly transform how the truck accelerates and performs, particularly when increasing the overall size of the truck and its tires. The 5IVE-TE 3.0 now comes with a new 43/12 ring and pinion gear, and 67t spur to get this beast of a truck moving.
New Pro-Line Mirage TT Tires
Highly detailed scale Pro-Line Mirage TT tire in a new, larger 8.5” size. The design utilizes proprietary Pro-Line Pro-Loc bead technology for secure tire mounting.
1/5 5IVE-TE 3.0 Electric 4WD Desert Truck RTR Product Specs
- Approximate Assembly TimeLess than 1 Hour
- BatterySold Separately
- ChargerSold Separately
- Chassis6061-T6 Aluminum
- Completion LevelReady-To-Run
- Connector TypeIC5
- DifferentialGear
- Drivetrain4WD
- Final Drive Ratio14.12
- Internal Gear Ratio3.58
- LiPo Compatibility8S, 12S
- Max Battery Dimensions180 x 52
- Motor Size560Kv
- Motor TypeBrushless
- Pinion17T
- Power TypeElectric
- Product Height15.4" (391 mm)
- Product Length42.9" (1090 mm)
- Product WeightWithout Battery: 51.4 lbs / With Recommended 2 6S 7200mAh Battery: 55.7 lbs
- Product Width21.2" (538 mm)
- RadioIncluded
- ReceiverIncluded
- Scale1/5
- ServosIncluded
- Shock TypeBig Bore Oil-Filled
- Spur Gear67T
- Tire TreadMirage TT tire
- Top Speed50+
- Vehicle TypeDesert Truck
- Wheel Hex Size24mm
- Wheelbase26" (660 mm)
