Description
- ROAR approved Innovative 4-pole-8-magnet "staggered pole" rotor (Hobbywing-patented) with low cogging effect and torque pulsation greatly improves control feel around corners.
- Built-in chip for making the motor be easily identified by HOBBYWING ESCs. When pairing it with an HW sensored ESC (i.e. XR8 SCT/Plus), the motor can work in the “sensored” mode at all times with great output linearity after the identification. The Turbo timing is allowed to be activated for higher output.
- Magnetic ring mounted on the rotor protects the motor from signal interference and guarantees its super stability in the “sensored” mode.
- With the mechanical timing adjustable from 20 degrees to 40 degrees, users are able to have different output power.
- Turbine design implemented by the rotor accelerates the internal air circulation and reduces heat.
- Rebuildable design (partially rebuild-able) and a screw-less motor case for easy routine maintenance effectively prolong the motor life and raise the motor efficiency.
- CNC machined aluminum housing, high purity copper windings, advanced rotor structure, high-quality alloy steel output shaft, high-precision bearings for high durability and smoothness.
- New-style “U” solder tabs at the bottom of the motor for easy soldering and wiring.
What's in the box?
- 1x Xerun 3652SD motor
- 2x sensor wires (80mm / 120mm)
- 1x pinion gear
- 1 set of factory premium grade wires

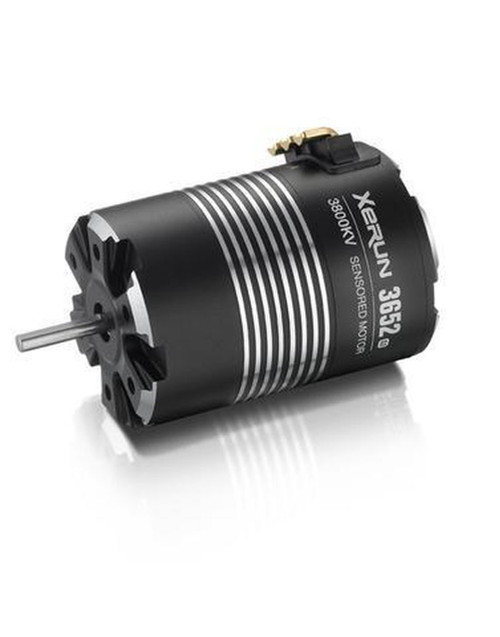

Xerun 3652 sensored brushless motor
- Motor Dimension: Φ=36mm (1.417in) L=52.5mm (2.067in)
- Bearing: Front: NMB R-1350zz(5*13*4mm) Rear: 5*11*5mm
| P/N | 30401056 | 30401058 | 30401059 | 30401060 | 30401061 |
| KV (no Load) | 3100 Kv | 3800 Kv | 4300 Kv | 5100kv | 6100kv |
| POLE | 4 | 4 | 4 | 4 | 4 |
| LiPo (V) | 2-3S | 2-3S | 2S | 2S | 2S |
| No Load Current (A) | 2.9 | 3.9 | 4.2 | 4.7 | 5.9 |
| Resistance | 0.0087Ω | 0.0059Ω | 0.0052Ω | 0.0035Ω | 0.0029Ω |
| Diameter (mm) | 36mm | 36mm | 36mm |
|
|
| Length w/o Shaft (mm) | 56 | 56 | 56 |
|
|
| Shaft dia. (mm) | 5 | 5 | 5 |
|
|
| Shaft length (mm) | 15 | 15 | 15 |
|
|
| Weight | 192g | 192g | 187g |
|
|
| Adjut. timing (degree) | 20-40 | 20-40 | 20-40 | 20-40 | 20-40 |
| Combo |
IMPORTANT NOTE:
► The “Maximum Output Power” is measured with 7.4V input voltage and ESC at ZERO timing. This parameter is neither the “maximum input power” nor the “rating power”, it is calculated by “RPM x Torque / 9550”. Because each factory runs a different testing platform, the above data may vary. ► Max Amp is the “Current at Max Output Power” It is a guide used for selecting the suitable power system (ESC, Motor, Gear ratio, etc.) If the actual input current of the power system is bigger than the peak parameter stated in the above table, this means that the power system settings/configuration is over its peak (or in other words, “overloaded”.) ► The “KV” is measured without any load on the motor and ESC at ZERO timing. Do NOT run the motor without load for long periods of time (1 minute), otherwise the motor may overheat.
