Product Description
Key Features
- Ultimate Scale Yota Cast Axles
- Custom Designed for True to Scale Looks
- 1/10 V8 Scale Engine
- Twister High Torque Metal Gear Digital Servo
- Chassis Mounted Steering Servo
- 540 Crawler Brushed Motor 45T
- Superlift Dual Front Shock Mount for Trail Finder 2
- Prowler XS (Xtreme Scale) 1.9" Edition Tires
- Realistic Billet Aluminum Ladder Frame Chassis
- Center Mounted Realistic 4x4 Transfer Case
- Outcry II Waterproof ESC
- Plastic Fuel Cell Receiver Box
- Superlift Superride 80mm Scale Shock Absorbers
- Raceline Monster 1.9" Beadlock Wheels (Black/Silver)
- 6-Cell 3000mAh NiMH Battery Pack
- NiMH Peak Battery Charger
- It's All in the box! Everything you need is provided to get you on the trails today.
- (1) Trail Finder 2 RTR with Chevrolet Blazer Body Set (Limited Edition)
- (1) 6-Cell 3000mAh NiMH Battery Pack
- (1) NiMH Peak Battery Charger
- (1) User Manual
Overview
Adventures can happen anywhere. Nothing will give you more fun in the sand, dirt, snow or mud than the TF2 RTR. Part scale truck, part adventurer, your TF2 RTR is ready for your mud kicking trail-loving lifestyle!
The TF2 RTR has both detailed styling and aggressive performance. You will find a balance of capability and performance built into every TF2 RTR. Performance of the TF2 is smooth with its TCI R4 Transmission, 4WD drivetrain, bulletproof transfer case and quality metal components throughout. The TF2 RTR is truly a work of art in both appearance and performance.
Every TF2 RTR is compatible with a full range of options and performance parts designed to enhance the performance and add to the scale look of the only true scale 1/10 offroad truck... The TF2 RTR.
Hammer Transfer Case
- Ratio: 1.47: 1
- Gears: Wide .8 Mod Hardened Steel Gears
TCI Heavy Duty R4 Single Speed Scale Transmission
- Output Shaft Length: 0.33 in (8.5mm)
- Output Shaft OD: 0.19 in (5mm)
- Gear Ratio: 10.1:1
Cast Yota II Axles
- Ratio: 15/40 = 2.67: 1
- Width at Hex: 7.04 in (179mm)
TF2 Chassis
- Features: Billet Aluminum Construction
- Adjustable Shock Hoops
Shock Absorbers
- Superlift Superide 80mm-90mm Scale Shock Absorbers
Wheels
- Name: 1.9" Beadlock Wheels
- Hub: Pin Type
- Width: 1.08 in (27.5mm)
- Outside Diameter: 1.9 in (48mm)
Truck Dimensions
- Wheelbase: 7.8 in (200mm)
- Width: 19.8 in (503mm)
- Height: 9.3 in (237mm)
- Ground clearance: 2.4 in (62mm)
- Final Drive Ratio: 31.9:1
- Weight: 8.44Lbs (3.83Kg)
DRIVETRAIN
The TCI R4 Transmission is paired with our popular V8 Scale Engine and finished off with our 1/10 Holley® Chrome Valve Covers. With its durable, billet aluminum case and super smooth gears, The TF2 RTR will take you from point A to Z in no time! You may just want one in all your rigs!
The TF2 RTR includes the Hammer Transfer Case. Packed with scale detail, the case features a cast metal exterior and heavy duty .8 Mod Widened Gears for durability.
Drawing on the success of the RC4WD MOA Gear Sets, the TF2 RTR Drivetrain has the most durable gears RC4WD has to offer so the TF2 RTR will stay on the trail, day after day.
The most scale accurate axles on the market, the RC4WD Cast Yota Axles feature innovative round knuckles, lower mounting points and compact offset pumpkins.
The Driveshafts for the TF2 RTR are a design featuring heavy duty uni-joint metal shaft for great driveline angles and durability on the trail.
SUSPENSION
The TF2 RTR Chassis features a molded fuel cell that doubles as an electronics storage box plus an aluminum, frame-mounted under cab electronics tray for multiple electronics mounting options. Also includes a sturdy battery tray with strap mounts.
The TF2 RTR includes Superlift Superide 80mm-90mm Scale Shock Absorbers. These ultimate scale shock absorbers offer realistic looks and the ultimate in performance. They are machined from billet aluminum with internal springs and are rebuildable.
The TF2 RTR Chassis is a machined billet aluminum ladder frame design with leaf springs, scale shock hoops, chassis servo mounts and hard body mounts.
The TF2 RTR includes a set of RC4WD Raceline Monster 1.9" Beadlock Wheels. These are machined from billet aluminum with a smooth black and silver finish. Each wheel face showcases the Raceline logo to add to the amazing details!
Every TF2 RTR needs a tough set or rock grabbing tires and the included Prowler XS (Xtreme Scale) 1.9" Edition Tires deliver the perfect amount of traction with its advanced X3 soft & sticky compound. The scale details complete the look in just the right size.
DETAILS

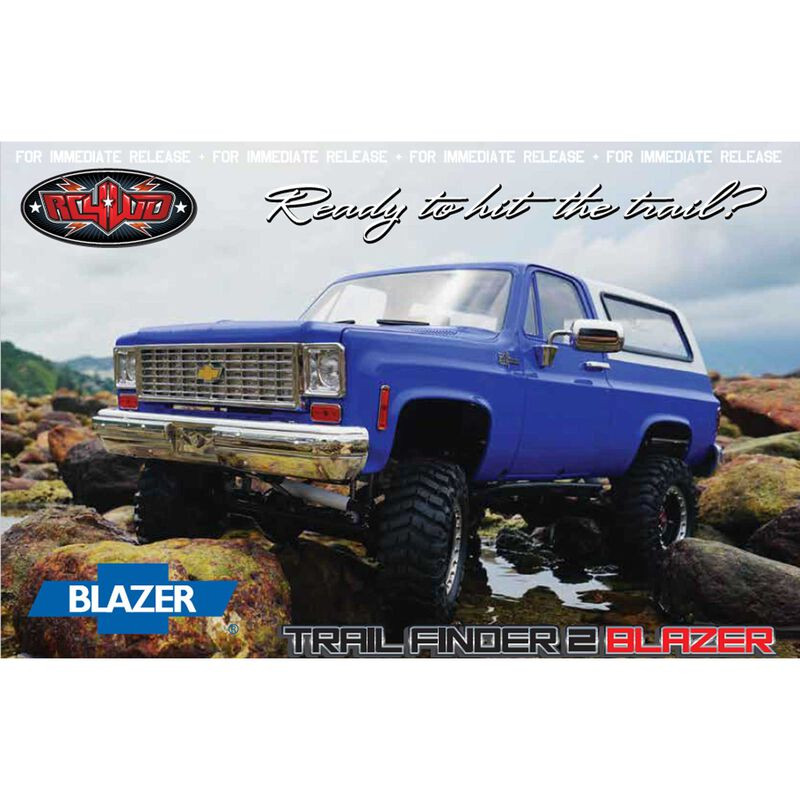

The TF2 RTR features a professionally painted Chevrolet Blazer Hard Body Complete Set. The GM body has an awesome assortment of scale details including mirrors, door handles, vents and grill to match the 1:1 vehicle.
The unmistakable lines of a classic. The GM Body Set is an exact replica of the full scale vehicle. No other scale body comes this close to realism.
The GM Body Set comes in durable hard plastic and painted in the iconic Blue with a clean white roof. All the trim parts are separate pieces to get a great look, with minimal fuss.
The GM Body Set includes a dismountable roof. You can now change the style by mounting or dismounting the roof, adjusting to your own preference!
The crisp lines and bold details are all captured. Chrome plated parts are included as well as colored lenses for all signal lights. All lamps can be illuminated with minimum modifications.
ELECTRONICS
The TF2 RTR includes a high quality XR3 3 Channel 2.4Ghz Radio System. Use the third channel to control the winch and add even more fun to your scale adventure!
The TF2 RTR is powered by the RC4WD 45 Turn Crawler Motor. With its sealed endbell for increased durability and long lasting performance, you're sure to get where you're going!
The TF2 RTR features the popular RC4WD Outcry II Waterproof ESC Brushed Speed Controller with built-in drag brake for reliable, constant power on demand. Anytime.
A great truck needs a great servo to get you out of those tough spots and the TF2 RTR features the Twister. A high torque metal gear digital servo to handle all your steering duties.
It's All in the box! Everything you need is provided to get you on the trails today!
Product Specifications
Specs
| Completion Level | Ready-To-Run |
| Drivetrain | 4WD |
| Power Type | Electric |
| Motor Type | Brushed |
| Receiver | Included |
| Scale | 1/10 |
| Speed Control | Included |
| Vehicle Type | Rock Crawler |
