Product Description
Product Details

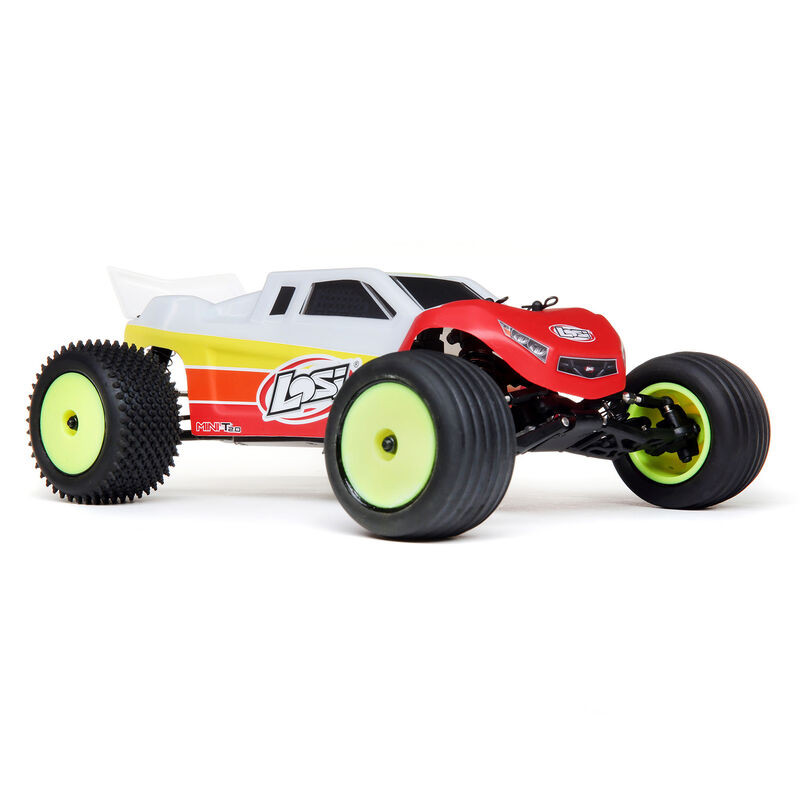

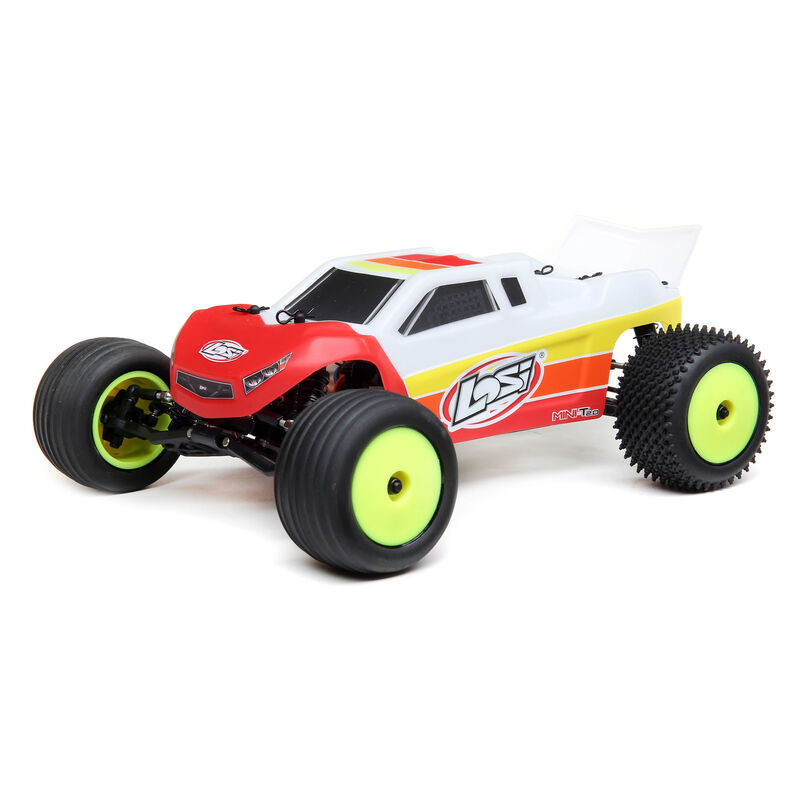

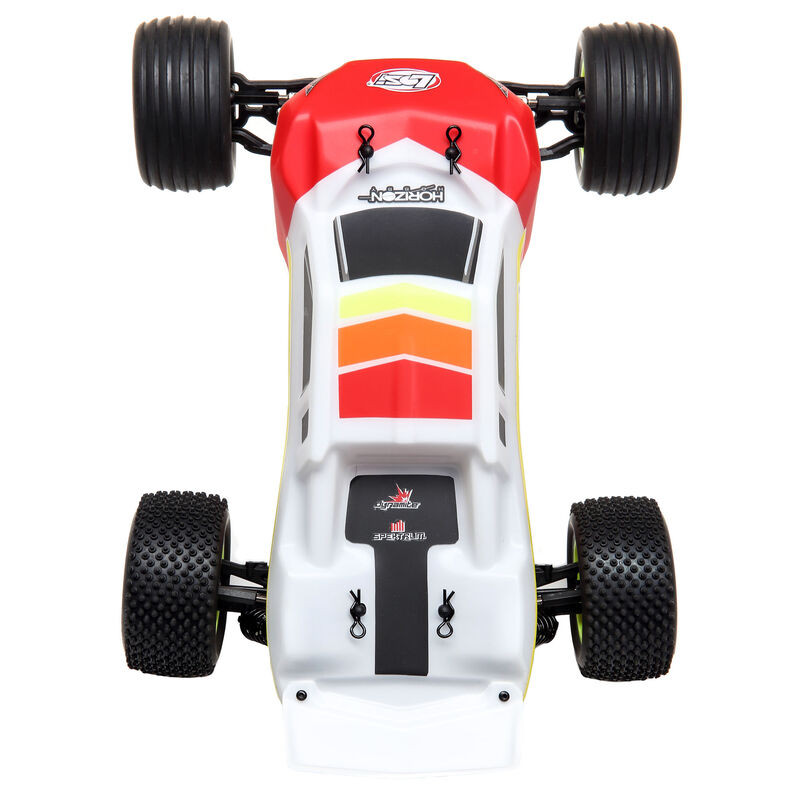

Reinvented with modern technology and Team Losi Racing® engineering, the Losi® Mini-T 2.0 1/18th-scale Brushless 2WD Truck honors the heritage of the original Mini-T with features and options never dreamed of back in the day.
Key Features
- Scaled Down Version of the 1/10th 22T
- Brushless 2-in-1 motor/ESC configuration
- Dynamite 7.4V 2S 800mAh 50C LiPo Battery
- Waterproof electronics
- Fully assembled and ready-to-run with no additional items needed
In The Box
- (1) Losi® 1/18 Mini-T 2.0 RTR Truck
- (1) Horizon® 2.4Ghz Receiver WP 3-CH
- (1) Dynamite® BL Motor/ESC 2-in-1 6000Kv
- (1) Spektrum™ SX107 Micro Metal Gear Servo
- (1) Dynamite® 7.4V 800mAh 2S 50C LiPo Hardcase: EC2
- (1) Dynamite® USB 2S LiPo Charger
- (4) AAA Batteries
- (1)Horizon® 3-CH 2.4Ghz Transmitter
Needed to Complete
- Nothing! Everything is included.
Features
- Scaled Down Version of the 1/10th 22T
- Brushless 2-in-1 motor/ESC configuration
- Mid Motor Configuration
- Fully assembled and ready-to-run
- 2.4Ghz radio system
- Dynamite 7.4V 2S 800mAh 50C LiPo Battery
- Full Ball Bearings (less steering)
- Servo Saver
- Waterproof electronics
- 22 Suspension Geometry
- Option Parts Availability
Overview
Reinvented with modern technology and Team Losi Racing® engineering, the Losi® Mini-T 2.0 1/18th-scale Brushless 2WD Truck honors the heritage of the original Mini-T with features and options never dreamed of back in the day. It may be small, but the powerful performance of the Brushless 2-in-1 motor/ESC configuration mirrors 1/10 th-scale size vehicles. The Mini-T suspension geometry is based on the high-end racing TLR® 22 platform. Plus, the Dynamite® 7.4V 2S 800mAh 50C Li-Po battery provides plenty of power and the 2.4Ghz radio system keeps you in control. It features a mid-motor configuration for better balance, rear step pin and front directional tires, and a full range of option parts all in a total ready-to-run package. TLR engineering and performance in a 1/18th size package you can take practically anywhere.
Scaled-Down Version of the 1/10th TLR 22T
Back in 2003, Team Losi released the hugely successful Mini-T, which was based on the XXXT platform. Today's Mini-T 2.0 Brushless is now based on our TLR 22T platform, taking advantage of what we've learned over the years to make this generation of Mini 2wd trucks unbeatable.

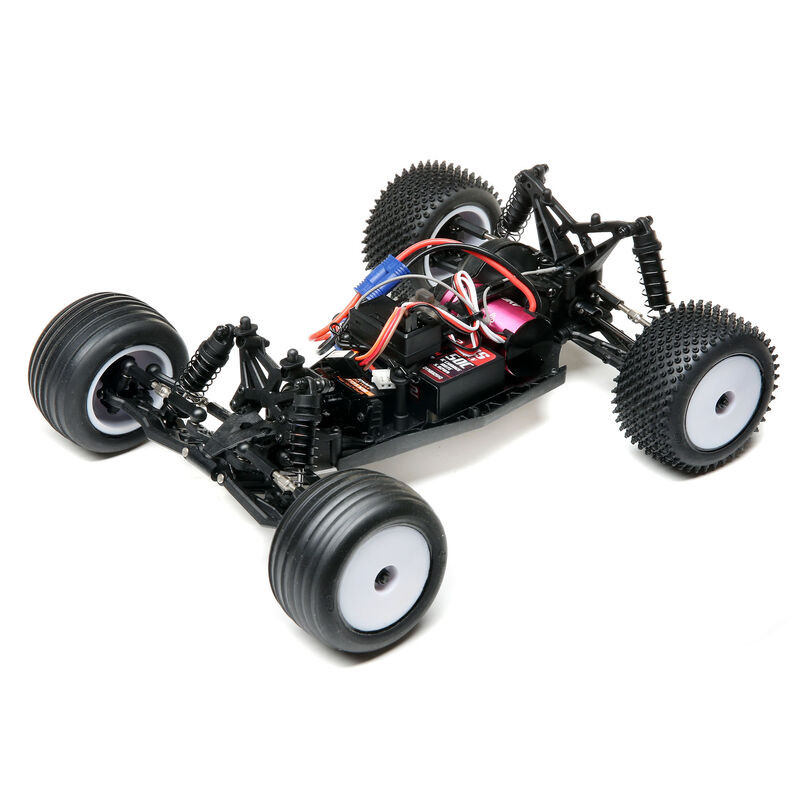

Mid Motor Configuration
The Mini-T 2.0 Brushless comes standard with a mid-motor configuration. This not only replicates the 1/10th version but also provides a better-balanced chassis allowing for better performance on multiple surfaces and also balances out steering and traction.
Brushless Motor/ESC 2-in-1 Combo
The Dynamite 6000Kv brushless motor system will give you tons of wheelie popping torque and top speed RPM. The 2 in 1 ESC keeps the inside of the Mini-T 2.0 Brushless super clean with no extra wires.

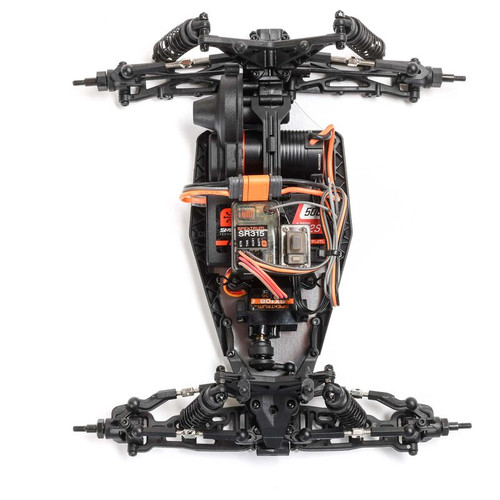

Aluminum Chassis
The Mini-T 2.0 Brushless has been designed with a 1.5mm thick 6061-T6 Aluminum chassis plate. The aluminum chassis provides more strength and durability while vastly improving performance.

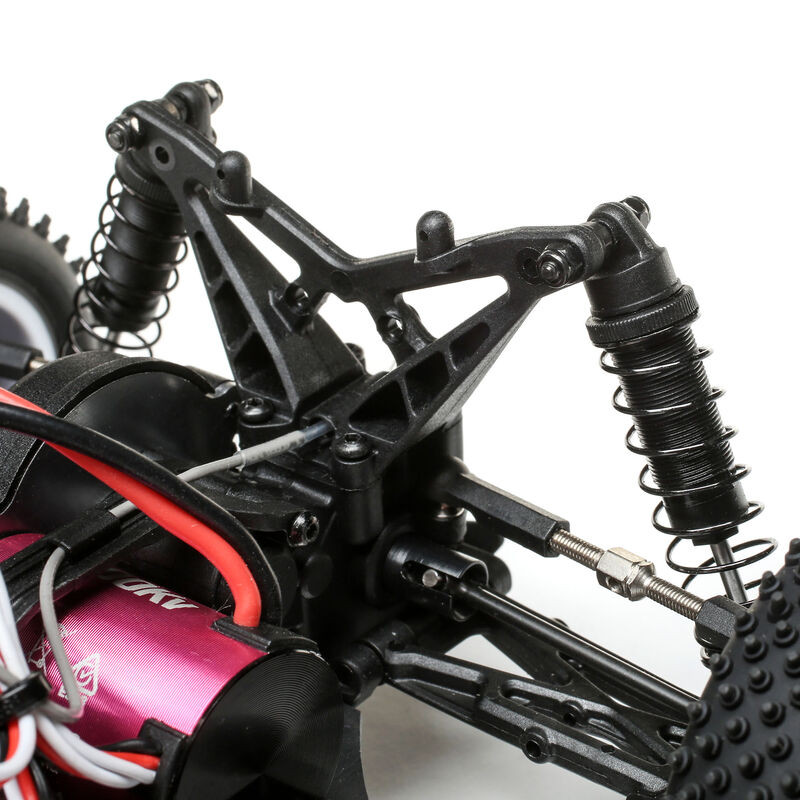

Threaded Oil Filled Shocks
The injection-molded shocks feature threaded shock collars allowing for easy preload/ride height adjustments. Additionally, the shock bodies feature a bottom loading, re-buildable shock cartridge with dual o-rings to help keep the oil in the shocks.
Ready to Run
The Mini-T 2.0 Brushless comes fully assembled and ready to rock. Just install the included AAA batteries in the transmitter, charge the included LiPo battery with the included charger.
Dynamite Reaction 2.0 7.4V 2S 800mAh 50C Li-Po Battery
The Mini-T 2.0 Brushless comes equipped with a 2S 800mAh Li-Po Battery for excellent performance and run time.
USB Charger
When we say entirely ready to run, we mean it. The Mini-T 2.0 Brushless comes with a USB charger making charging your battery easy and convenient.
2.4Ghz Transmitter and Receiver
With features like throttle/steering reversing, throttle/steering travel adjust, the included 2.4Ghz transmitter packs a lot of features in a small package with the interference-free connection.
Front Directional / Rear Step Pin Tires
In order to handle the extreme power of the Dynamite 6000Kv brushless motor system, the Mini-T 2.0 Brushless comes standard with step pin rear tires which are a perfect complement to the directional ribbed front tires.
Full Ball Bearings*
The Mini-T 2.0 Brushless comes equipped with ball bearings that enhance vehicle performance by reducing drivetrain friction and increased smoother, longer running.
Servo Saver
The Mini-T 2.0 Brushless comes with an oversized three-wire Spektrum metal gear servo equipped with a servo saver that provides extra protection.
TLR 22T Suspension Geometry
The Mini-T 2.0 Brushless suspension geometry has been derived from the TLR 22T platform providing balanced steering and traction from the optimized race design.
Option Parts
The Mini-T 2.0 Brushless has a full line of option parts available from aluminum upgrades, brushless motor, and much more.
Product Specifications
Specs
| Approximate Assembly Time | Less than 1 hour |
| Ball Bearings | Complete (less steering) |
| Battery | Included |
| Body | Polycarbonate with screen printed color scheme |
| Brakes | Integral with ESC |
| Bushing Material | Plastic |
| Charger | Included |
| Chassis | 1.5mm 6061-T6 aluminum |
| Completion Level | Ready-To-Run |
| Differential | Bevel gear |
| Drivetrain | 2WD |
| Drive Type | Forward/Brake/Reverse |
| Power Type | Electric |
| Gear Pitch | 0.5 Module |
| Ground Clearance | 0.97 in (24mm) |
| Inner Tire / Outer Wheel Diameter | 1.4 in |
| Motor Type | Brushless - Sensorless |
| Pinion | 15T |
| Product Height | 3.59 in (91 mm) |
| Product Length | 9.16 in (232 mm) |
| Product Width | 7.07 in (179 mm) |
| Radio | Included |
| Receiver | Included |
| Scale | 1/18 |
| Servos | Included |
| Shock Type | Oil-filled, 7mm bore |
| Speed Control | Included |
| Spur Gear | 60T |
| Suspension | Independent, derived from Losi 22 platform |
| Tire Tread | Front directional rib, rear step pin |
| Track | Front and Rear 5.91 in (150 mm), distance between outer edges of tires measured side-to-side |
| Vehicle Type | Stadium Truck |
| Water-Resistant | Yes |
| Wheelbase | 6.30 in (160 mm) |
| Wheel Type | Dish |
| Wheel Width | 1.10 in (28 mm) |
