30401116 Hobbywing XeRun V10 G3 5T 6500kV Sensored BL Motor

MSRP:
Was:
Now: $99.99
(You save )
(No reviews yet) Write a Review

Description

DESIGN matters. It’s a motor specially designed for Extremely High-Level Racing. The RMP of G3 Stock motor is significantly improved, the KV & torque are improved by 16% and 4% respectively, compared with the V10 G2 Stock motor.

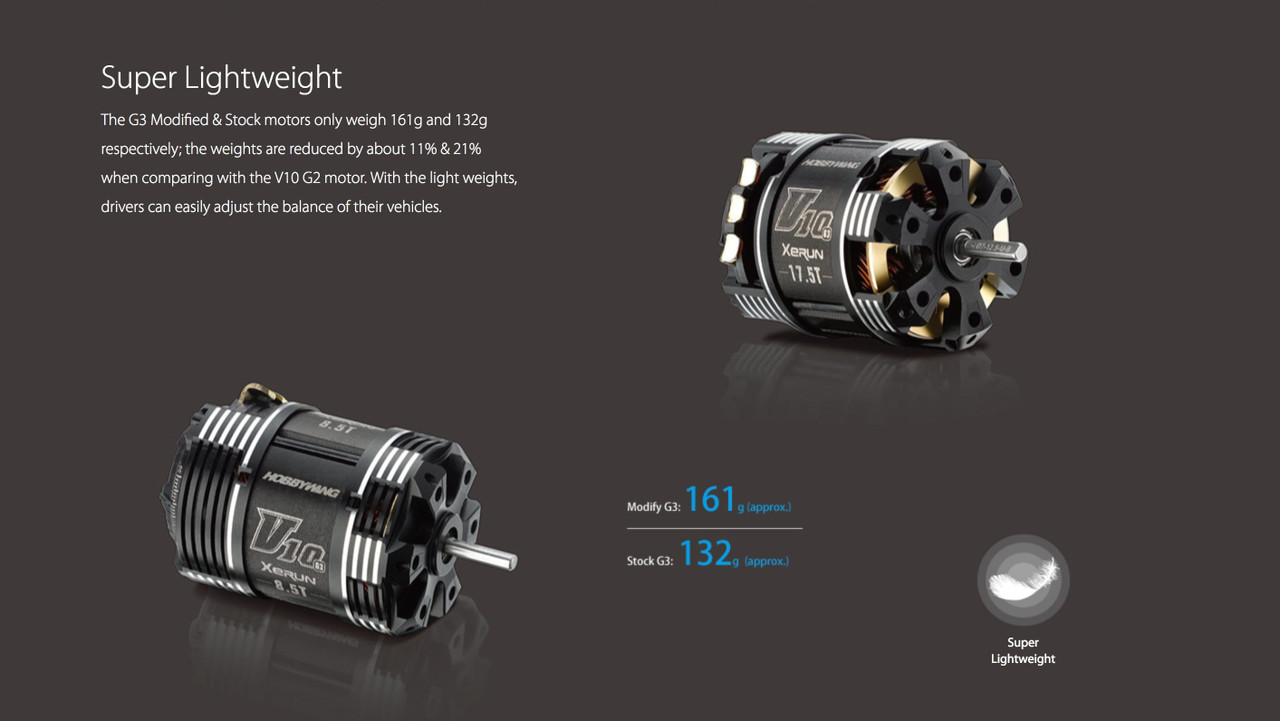

  • Lightweight. The G3 Modified & Stock motors only weigh 161g & 132g respectively, the weights are reduced by 11% & 21% when compared with the previous generation G2 motors.
  • The built-in high precision Hall sensor combined with the high precision and balanced rotor guarantee outstanding linearity of the motor.

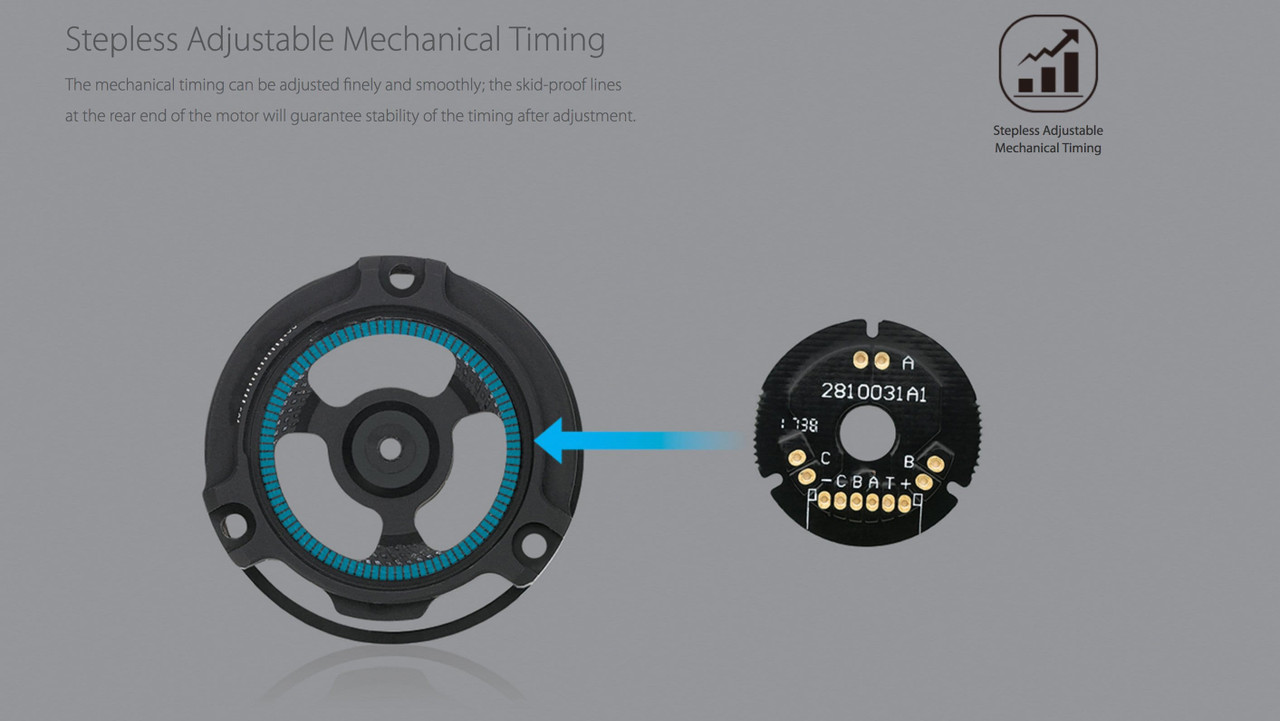

  • The mechanical timing can be adjusted finely and smoothly; the skid-proof lines on the rear end plate of the motor guarantee the stability of the timing after adjustment. For G3 Stock motors (10.5T~25.5T), the timing is adjustable from 30 degrees to 60 degrees; for Modified motors (3.5T~8.5T), the timing is adjustable from 20 degrees to 50 degrees.

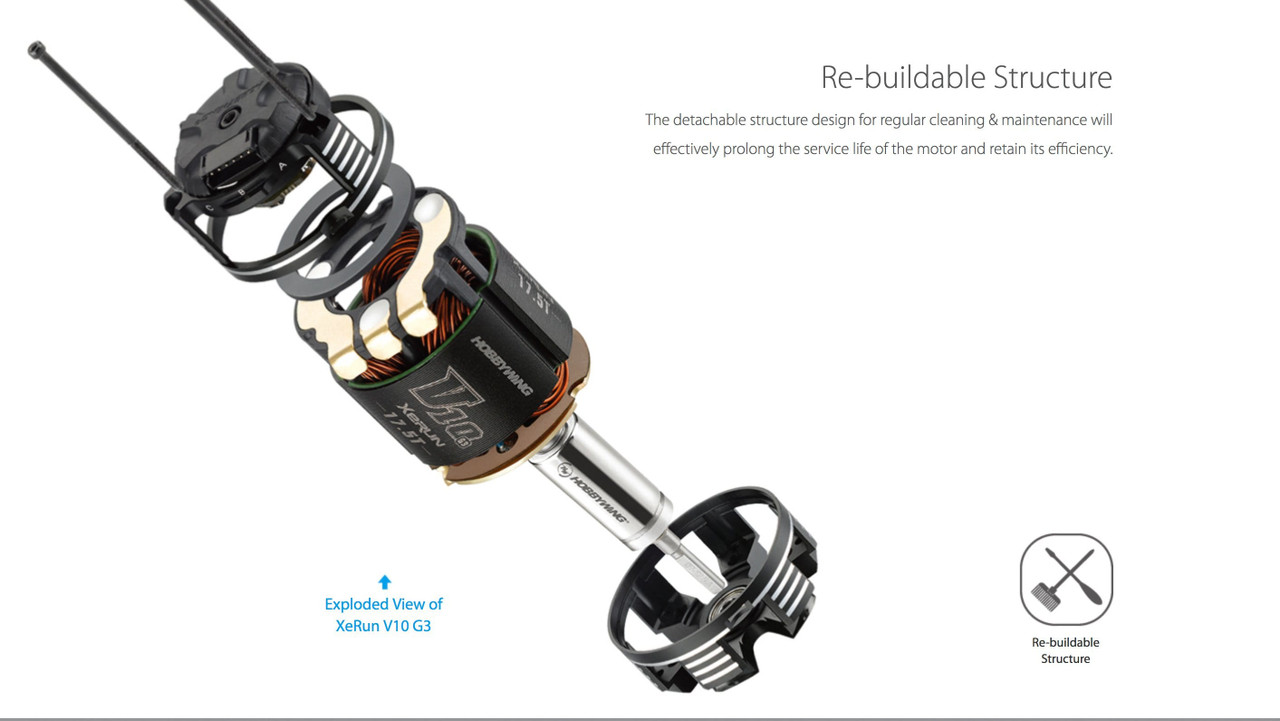

  • The motor case is designed to be easy to dismantle for maintenance purposes and for the replacement of common wearing parts.

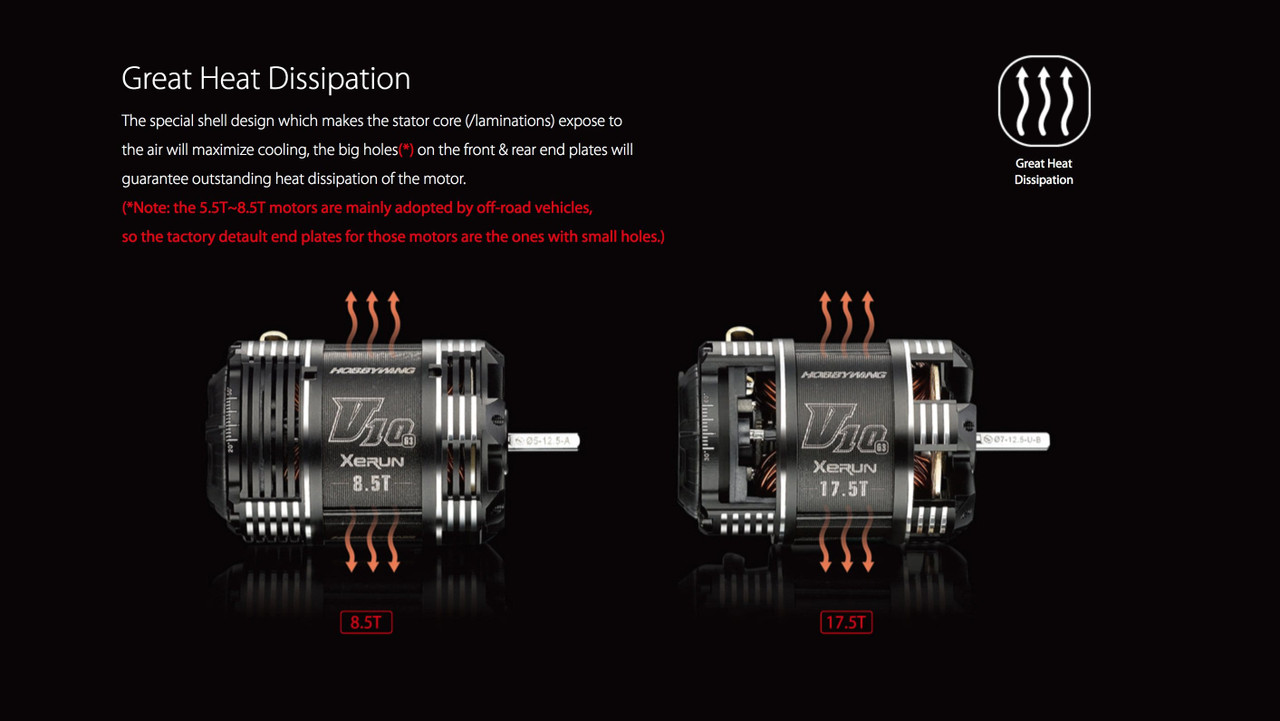

  • The special shell design which makes the stator core expose to the air maximizes cooling. Big holes on the end plates of 10.5T~21.5T motors further help reduce heat; small holes on the end plates of 5.5T~8.5T motors effectively keep sand or dirt from getting inside and damaging the motor(s).
  • The use of high-performance stator core, heat(200℃)-resistant wire, heat(200℃)-resistant rotor with strong structure, imported high precision and high strength bearings, and copper solder tabs with super current endurance guarantees outstanding performance and super durability.
  • It’s compliant with IFMAR, ROAR, EFRA, BRCA rules, and certificated by RoHS, CE, FCC
  • See User's manual for recommended FDR. Incorrect FDR will damage your ESC and motor.



Scale
  • 1/10th Brushed/Brushless
Brushed/Brushless
  • BL
Sensored/Sensorless
  • SD
Applications
  • Modified Class of 1/10th & 1/12thOn-road Racing
Pole Count
  • 2
KV Rating
  • 6500
LiPo Cells
  • 2S
No-load Current(A)
  • 5.5
O.D.(mm)
  • 35.9
Length (mm)
  • 51.2
Shaft Diameter (mm)
  • 3.17
Timing
  • 20-50 Degrees(Adjustable)
Max. Power Output(W)
  • 443
Amp at the Max. Power Output(A)
  • 118
Shaft Length (mm)
  • 13.3
Weight (g)
  • 159
Stock Rotor
  • 5-12.3

Additional Details

SKU:
400000006161
