Product Description
Features
- Based on the 9-time R.O.A.R. National Champion short-course race truck platform
- 2.4GHz 2-channel radio with new DVC (Dynamic Vehicle Control) receiver featuring built-in adjustable gyro
- Three-position wheelie bar with optional large wheels
- High-torque, metal-gear Reedy servo with spring style servo saver
- Powerful Reedy 3300kV brushless motor
- Reedy 3300kV brushless motor
- Lightweight front drag tires
- Durable and lightweight aluminum top shaft
- Low center-of-gravity molded composite chassis with hook-and-loop battery straps that accommodate both NiMH and 2/3S LiPo battery packs
- Metric hardware throughout
- 18 precision, rubber-sealed ball bearings
- Durable front and rear wide body mounts
- 2.6:1 ratio gearbox with heavy-duty sealed gear differential and externally adjustable slipper clutch
- Adjustable suspension geometry
- Vertical ball ends for roll center adjustments, front and rear
- Many Factory Team options already available!
Overview
Modern street racing's roots go back to Woodward Avenue, Michigan in the 1960s when the three main Detroit-based American car companies were producing high-powered performance cars. A private racing venue was not always available, and therefore the race would be held illegally on public roads.
The DR10 Drag Race Car is based on the 9-time R.O.A.R. Short Course National Championship winning trucks. The DR10 features a water-resistant high-power Reedy brushless speed control and 3300kV brushless motor, a 2.4GHz 2-channel radio system, as well as the ALL NEW DVC (Dynamic Vehicle Control) receiver unit with built-in adjustable digital gyro. Add to that a Reedy metal-gear, digital, high-torque servo and a water-resistant enclosed receiver box.
- Four (4) AA batteries (#ASC302 Reedy AA Alkaline) used in the transmitter
- NiMH or LiPo battery with High Current T-Plug (#ASC724 Reedy 7-cell WolfPack or #ASC751 Reedy WolfPack LiPo)
- Charger for battery used (#ASC27201 Reedy balance Charger - good for LiPo, LiFe)
- (1) DR10 Drag Race Car RTR
- (1) 2.4GHz 2-channel radio
- (1) High-torque, metal-gear Reedy servo
- (1) Reedy Brushless Speed Control
- (1) Product Manual

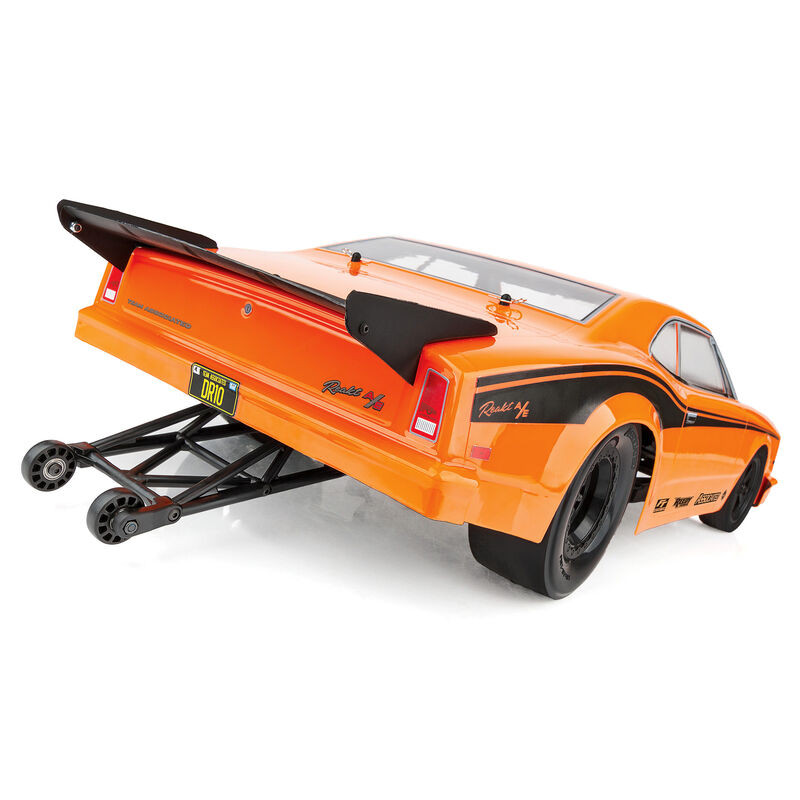

Factory-finished two-piece Reakt drag race body with rear spoiler
Water-resistant high-power Reedy brushless speed control with T-plug connector and LiPo
Aluminum 12mm big bore coil-over shock absorbers
Three-position wheelie bar with optional large wheels
Rugged steel turnbuckles for adjustable camber and front toe-in
Water-resistant enclosed receiver box
Rear CVA driveshafts for more reliability
Lightweight drag race-inspired wheels with high-grip rear drag slick tires
Product Specifications
Specs
| Approximate Assembly Time | No assembly required |
| Ball Bearings | 18 precision, rubber-sealed ball bearings |
| Battery Tray Dimensions | L, W, H: 5.5 x 1.8 x 0.96" (139 x 47 x 24.5mm) |
| Charger | Sold Separately |
| Chassis | Low center-of-gravity molded composite |
| Completion Level | Ready-To-Run |
| Drivetrain | 2WD |
| Power Type | Electric |
| Internal Gear Ratio | 2.6:1 |
| Motor Type | Brushless |
| Product Length | 24" (609.6mm) |
| Product Weight | 10.70" (272mm) |
| Product Width | 10.7" (272mm) |
| Radio | Included |
| Receiver | Included |
| Scale | 1/10 |
| Shock Type | Aluminum 12mm big bore coil-over |
| Speed Control | Included |
| Suspension | Adjustable suspension geometry |
| Tire Tread | Slick |
| Vehicle Type | Drag Car |
| Water-Resistant | Yes |
| Wheelbase | 12.68" (322mm) |
