Product Description
CEG8993
Ford F250 1/10 4WD KG1 Edition Lifted Truck, Burnt Copper - RTR
Features:
RGB LED Light:
- Stander Under Fender Multicolor RGB LED.

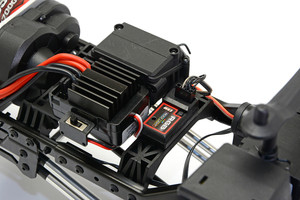

* ESC - 40A WP-1040-Brushed (By HobbyWing).
- Water-Proof and Dust-Proof for All Weather.
- Built-In Capacitor Module.
- Automatic Throttle Range Calibration.
- Low Voltage Cut-Off Protection for Li-Po and NiMH Battery.
- Over-Heat Protection and Throttle Signal Loss Protection.
* Motor
- RS-540 High Torque Brushed Motor.
* Servo
- 12Kg Metal Gear Servo (By Savox).
4.8V - 0.26 sec/60 10.0 kg-cm.
6.0V - 0.23 sec/60 12.0 kg-cm.
25T Horn Gear Spline.
* Radio System
- Pistol-Grip Mod-3S 3 Channel Transmitter.
- Digital Trimming.
- Steering Dual-Rate (ST D/R) Adjustment.
- End Point Adjustment (EPA).
- Build in Failsafe.
Transmitter Model: 82190
Frequencies: 2.4GHz
Weight: 375gm
Power Supply: 4 - AA Alkaline (Not Included).
-Receiver
Receiver Model: G82191
Frequency: 2.4GHz
Power Supply: DC 4.8 ~ 6.0V
Dimensions: 1.35 (L) x 0.72 (W) x 0.53 (H).
Body:
Official Licensed by Ford Motor
- F-250 Super Duty.
- Scale Realistic Body Details.
- Black Bed Liner Coating.
- hard Molded Front & Rear bumpers with build in 3mm LED housing
Chassis:
- Steel Frame Rails.
- CMS (Chassis Mounted Servo) Chassis Design.
- Stamped Steel Shock Hoops.
- Steel Skid Plate.
- Full Precision Ball Bearing Supported.
- Adjustable Turnbuckles.
- High Torque Servo Saver Horn.
- Easy Access Battery Tray.
- Battery Tray Size 146 x 50 x 25mm.
Suspension:
- Custom Lifted Suspension Design.
- 110mm Big Bore Oil Filled Adjustable Coil Over Shocks.
- 12mm over size shock body with 3mm Hardened Steel Polished Shaft.
- Harden Steel Steering Drag Link.
- CNC Machined 6mm Aluminum Linkage.
- Front / Rear Sway Bar.
Drivetrain:
- Full Metal Transmission Gears.
- 4 Wheels Drive.
- Center Shaft Drivetrain for More Power Transferred to the Wheels.
- Hight Efficient Transmission System.
- Wide Range Easy Changeable Gear Box Design.
- Sealed Transmission Case.
- Sealed Axle Housing.
- Metal Planetary Gear Type Differential.
Gear Ratio:
- Hi / Speed Ratio 1.56:1
- Hi / Torque Ratio 2.8:1
- Spur / Pinion Gear 32p85/32p12T
- Ring & Pinion Gear30/15T 2:1
Wheel:
Official Licensed by KG1 Forged
-KF004 Vile Wheel.
-66.50mm x 37.5mm.
Tires:
Official Licensed Fury Tires
-Low Profile Country Hunter tires.
-65 x 100.50 x 38.50 mm.
Specifications:
- Length: 25.6 inches (650mm)
- Width: 10.04 inches (255mm)
- Wheelbase: 16.02 inches (407mm)
- Ground Clearance: 3.54inch (90mm)
- Weight: 5.51 lb. 2.5 kg
- Battery Recommend : 2S 5000mah Lipo Battery with dean connector
