Description
DESIGN matters. It’s a motor specially designed for Extremely High-Level Racing. The RMP of G3 Stock motor is significantly improved, the KV & torque are improved by 16% and 4% respectively, compared with the V10 G2 Stock motor.

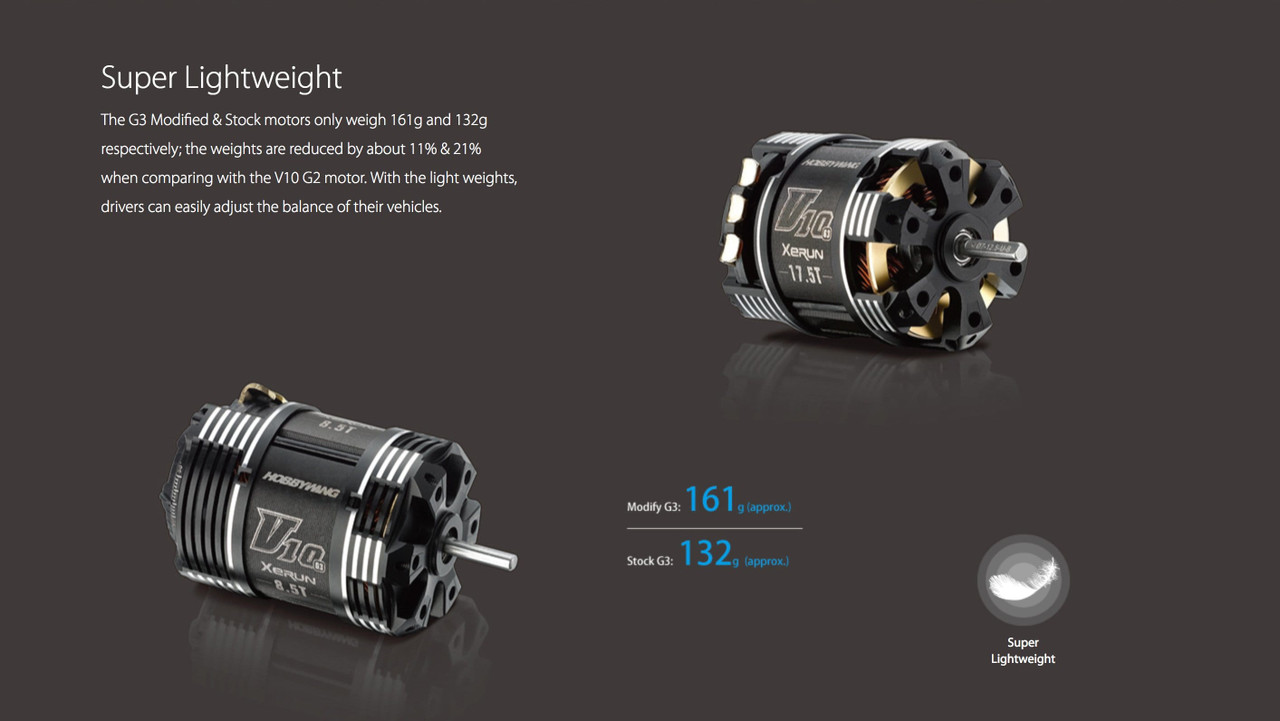

- Lightweight. The G3 Modified & Stock motors only weigh 161g & 132g respectively, the weights are reduced by 11% & 21% when compared with the previous generation G2 motors.
- The built-in high precision Hall sensor combined with the high precision and balanced rotor guarantee outstanding linearity of the motor.
- The mechanical timing can be adjusted finely and smoothly; the skid-proof lines on the rear end plate of the motor guarantee the stability of the timing after adjustment. For G3 Stock motors (10.5T~25.5T), the timing is adjustable from 30 degrees to 60 degrees; for Modified motors (3.5T~8.5T), the timing is adjustable from 20 degrees to 50 degrees.

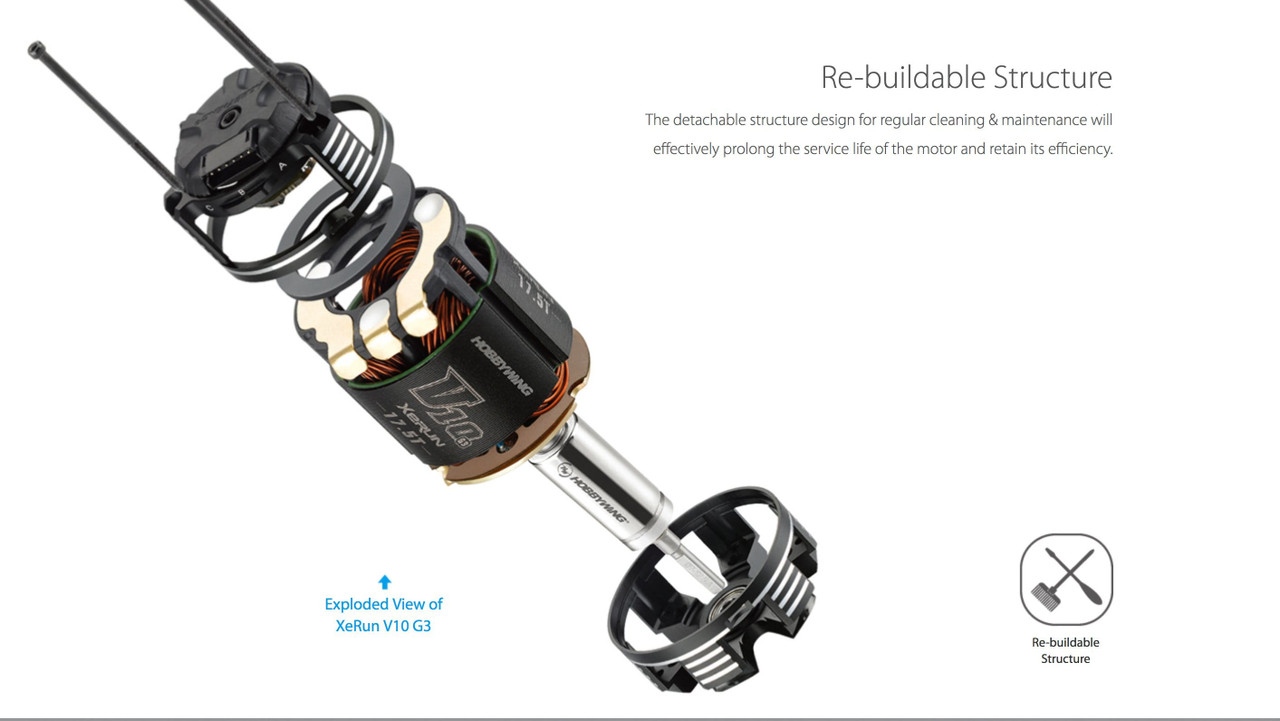

- The motor case is designed to be easy to dismantle for maintenance purposes and for the replacement of common wearing parts.

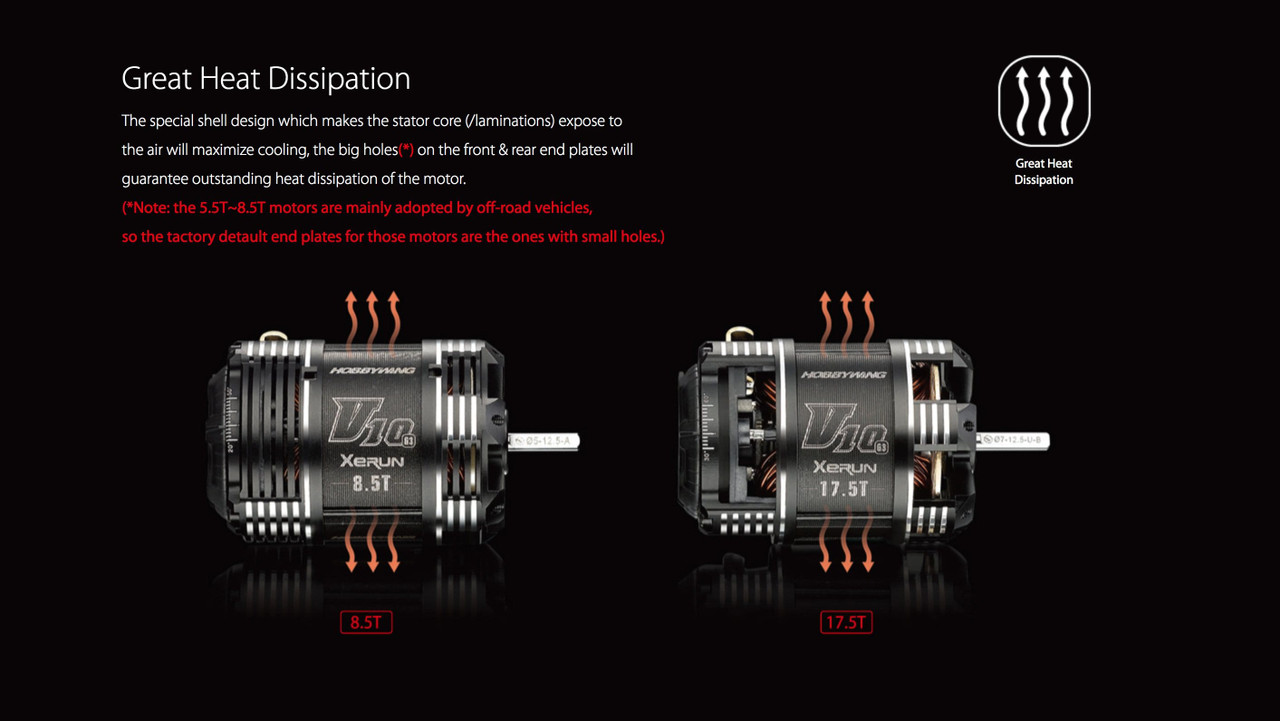

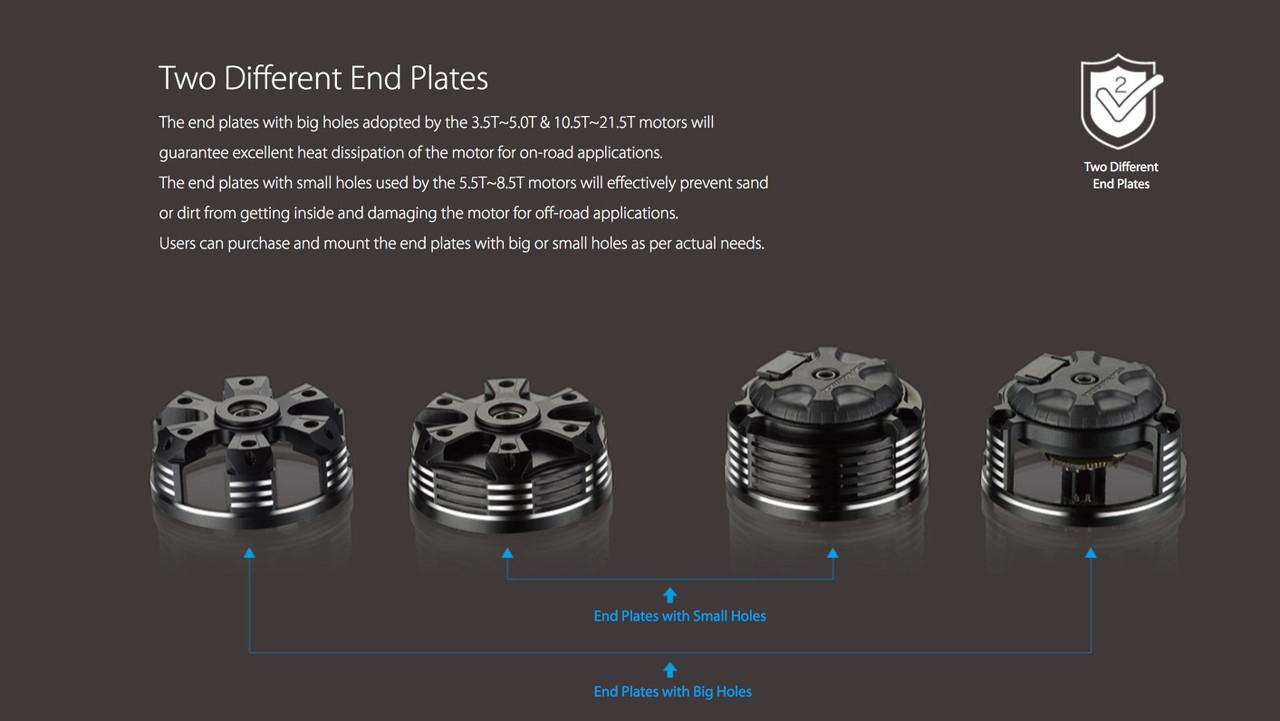

- The special shell design which makes the stator core expose to the air maximizes cooling. Big holes on the end plates of 10.5T~21.5T motors further help reduce heat; small holes on the end plates of 5.5T~8.5T motors effectively keep sand or dirt from getting inside and damaging the motor(s).
- The use of high-performance stator core, heat(200℃)-resistant wire, heat(200℃)-resistant rotor with strong structure, imported high precision and high strength bearings, and copper solder tabs with super current endurance guarantees outstanding performance and super durability.
- It’s compliant with IFMAR, ROAR, EFRA, BRCA rules, and certificated by RoHS, CE, FCC
- See User's manual for recommended FDR. Incorrect FDR will damage your ESC and motor.
Scale |
|
Brushed/Brushless |
|
Sensored/Sensorless |
|
Applications |
|
Pole Count |
|
KV Rating |
|
LiPo Cells |
|
No-load Current(A) |
|
O.D.(mm) |
|
Length (mm) |
|
Shaft Diameter (mm) |
|
Timing |
|
Max. Power Output(W) |
|
Amp at the Max. Power Output(A) |
|
Shaft Length (mm) |
|
Weight (g) |
|
Stock Rotor |
|
Additional Details
- SKU:
- 400000006055
