Description

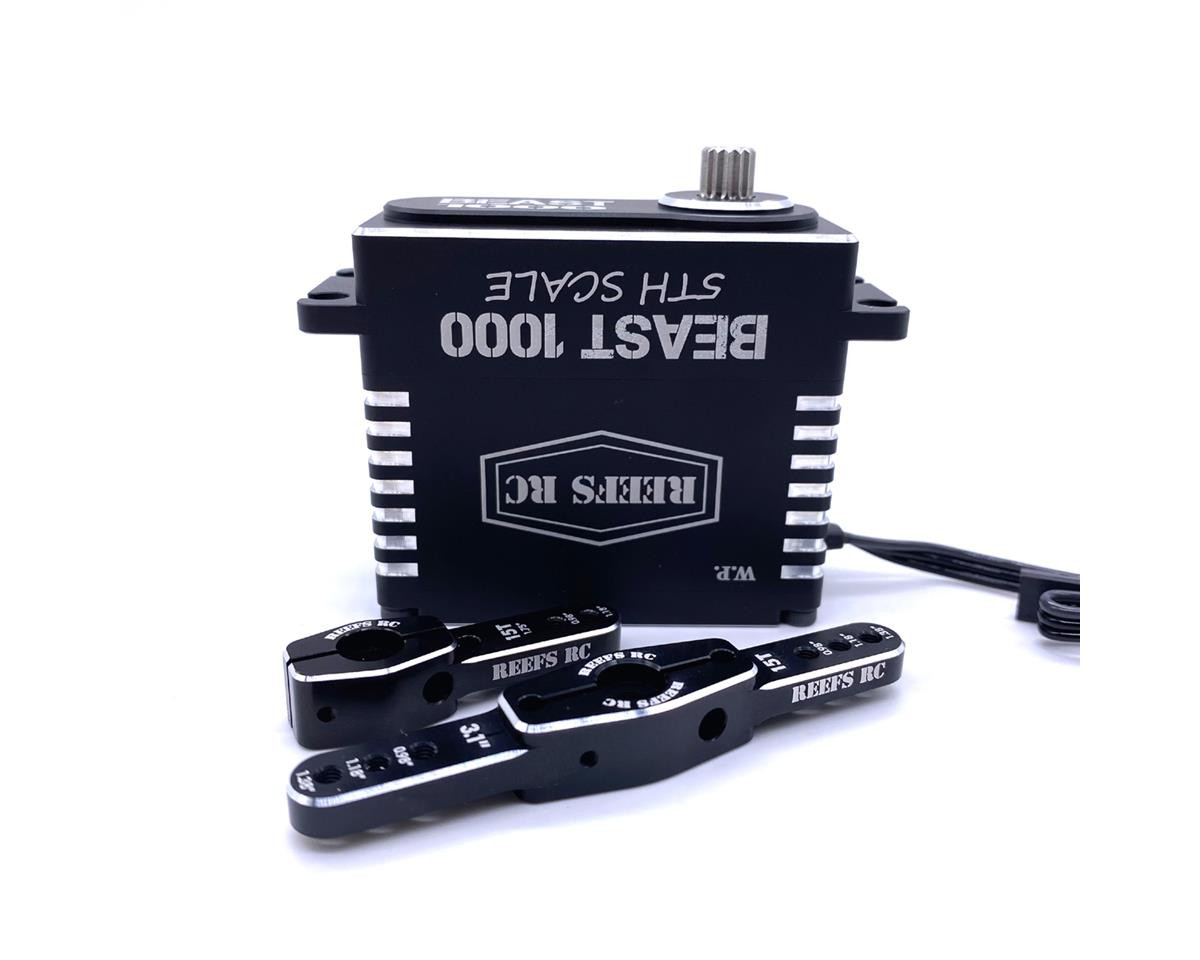

Reefs Beast 1000 Waterproof Digital 1/5 Scale Brushless Servo. This monster 1/5 scale servo is capable of up to 1080oz-in. at 8.4V and 0.08/60° sec. Package includes one servo, two servo horns and hardware.
NOTE: BEC is not required but recommended for maximum performance.
Features:
- High torque high speed brushless servo
- Magnetic angle sensor
- Waterproof
- Pulse width modulation control

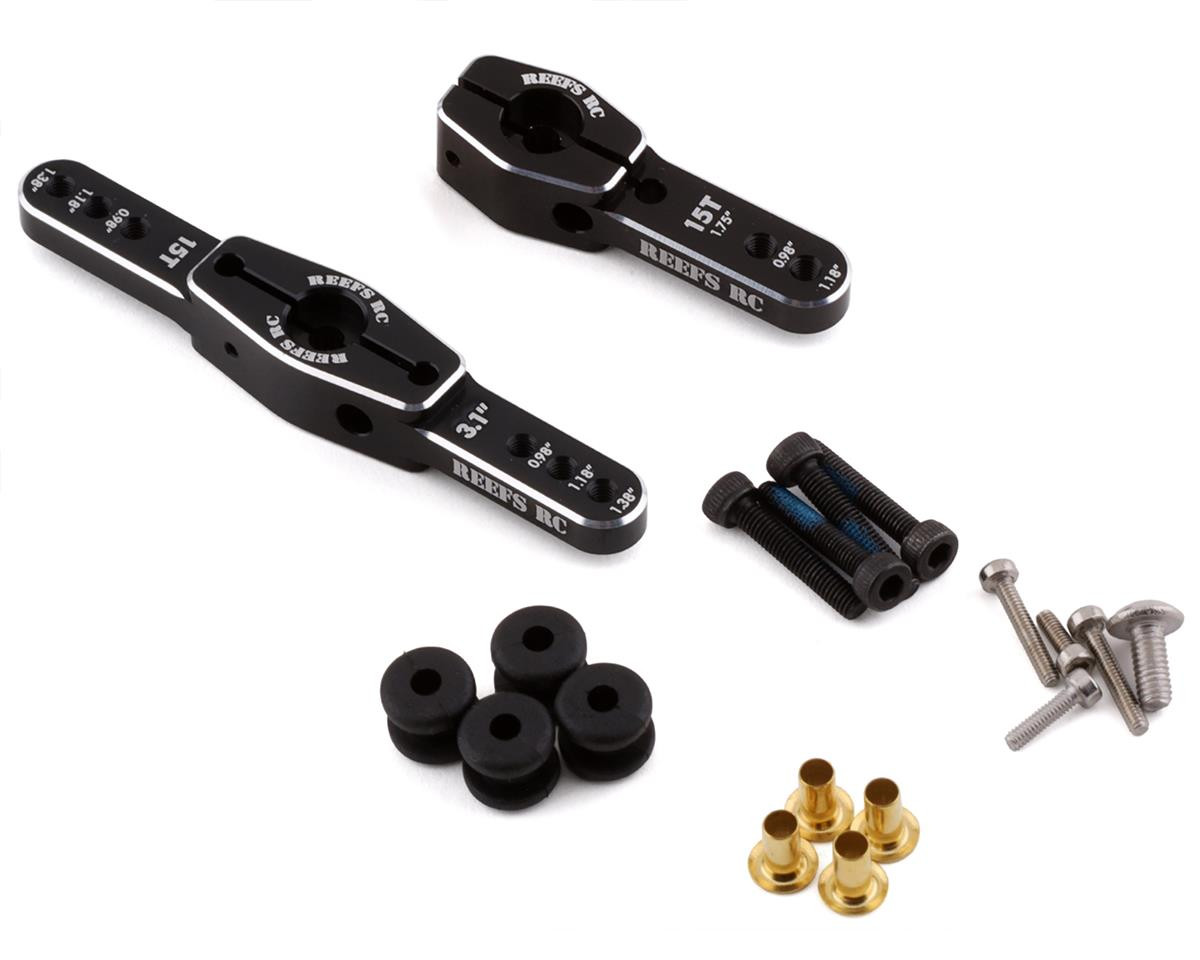

- Includes Reefs single and double servo horn
Specifications:
- Voltage: 4.8-8.4V
- Waterproofing: 7 Point Seal
- Mechanical Angle: No Limit
- Material: Steel Gears/CNC Aluminum Casing
- Bearing Type: 5 Ball Bearing
- Wires: 22AWG
- Weight: 10oz (285g)
- Dimension: 2.59x1.18x2.32in (LxWxH)
- Torque:
- 6V: 800oz-in
- 7.4V: 900oz-in
- 8.4V: 1080oz-in
- Speed:
- 6V: 0.11/60° sec
- 7.4V: 0.095/60° sec
- 8.4V: 0.08/60° sec
- Spline: 15T
- Dead Band Width: 2uSec
Additional Details
- SKU:
- 400000038452
