Description
Key Features
- 146 oz-in torque at 6V affords impressive performance in the toughest applications
- Precise digital control
- Dual ball bearings provide less resistance for higher performance and longer life
- Heavy-duty metal gear train
Overview

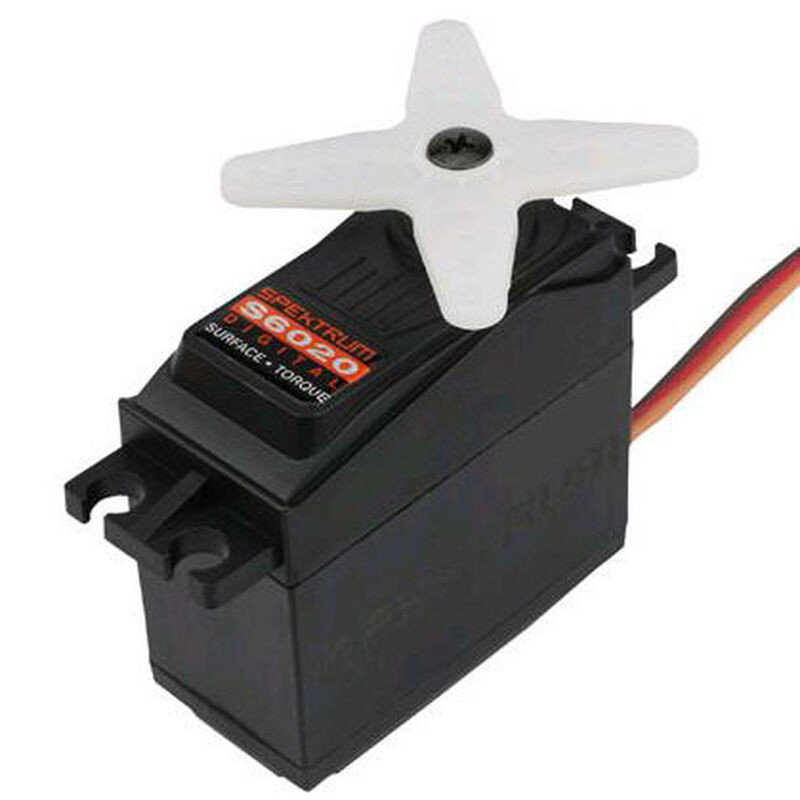

The heavy-duty, metal-gear S6020 servo puts out an impressive 146 oz-in of torque making it ideal for 1/10-scale trucks and cars. And it delivers this torque with silky smooth precision thanks to its dual ball-bearing output shaft.
Specs
Servo Type | Digital |
Servo Size Category | Standard |
Servo Operating Voltage | 4.8 - 6.0V |
Programmable | No |
Speed | 0.23 sec/60 deg @ 4.8V; 0.19 sec/60 deg @ 6.0V |
Torque | 100 oz-in (7.2 kg-cm) @ 4.8V; 146 oz-in (10.5 kg-cm) @ 6.0V |
Maximum Servo Torque | 100-199 oz-in |
Maximum Servo Speed | 0.150-0.199 sec |
Gear Material | Metal with one plastic |
Gear Type | Metal |
Bearing | Dual |
Bushing Or Bearing | Bearing |
