Description

Features

Small size and low weight makes it easy to take anywhere
Six independent charge output ports can be used simultaneously
Operates from a wall outlet or standard USB port
Convenient voltage-check function
Digital LED displays Port and Voltage information
(6) Charging status lights (Red: Charging/Green: Full)
Charging current: 350mA (4), 500mA (2)
Works with a variety of 1S battery connector types

Overview

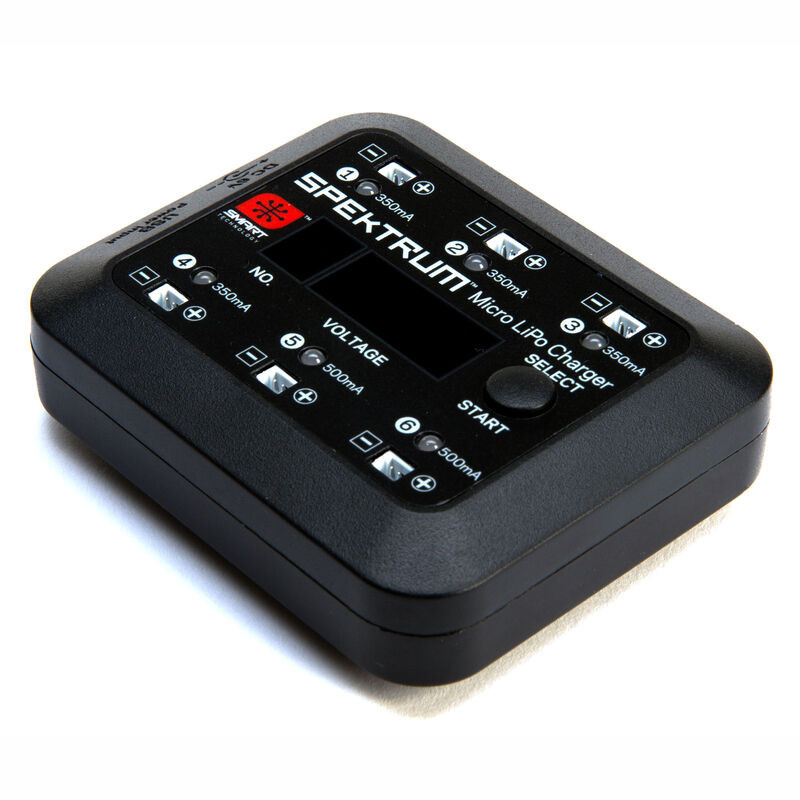

The Spektrum™ S63 DC/USB 1S LiPo Smart Charger is a portable 6-port device no RC pilot of ultra-micro aircraft should be without. Featuring Spektrum Smart™ Charger technology, the digital LED status screen keeps you in control of your ultra-micro 1S LiPo battery fleet by instantly displaying voltage no matter which of the six ports a battery is connected into.

Simply connect a 1S LiPo battery into one of the ports, and press Start—the Spektrum S63 LiPo Charger features integrated circuitry and six totally independent output charge ports dedicated to the 1S-type LiPo battery. For batteries with a 350mAh capacity or less, use ports 1-4; ports 5 and 6 have a higher charge rate for 1S batteries up to 750mAh.

Load up all six ports and fly practically as long as you like.

Compact

At practically half the size of the average smart phone, the Spektrum S63 LiPo Smart Charger can easily fit in your pocket making it ideal to have handy at the flight line for quick battery voltage tests.

Versatile

Go wireless with the Spektrum S63 LiPo Smart Charger by using any 6.0V power supply or USB output from a Laptop. Both a battery charger and a battery checker, management of your 1S batteries could not be made simpler.

Easy to Operate

One-touch button operation makes charging simple. The vivid LED readout center clearly displays port and voltage information while status LEDs brightly glow either red or green to indicate port status. SIMPLE!

Product Specifications

Product Width	2.5 in (63 mm)
Technology	Smart
Programmable	No
Display	LED
Input Voltage	5 VDC via USB charge port
Part Type	Electronics
Product Height	0.9 in (23 mm)
Output Connector	PH1.25
Product Weight	1.9 oz (54 g)
Maximum Charge Rate	500mAh
Product Length	3.0 in (76 mm)
