Product Description
Product Details

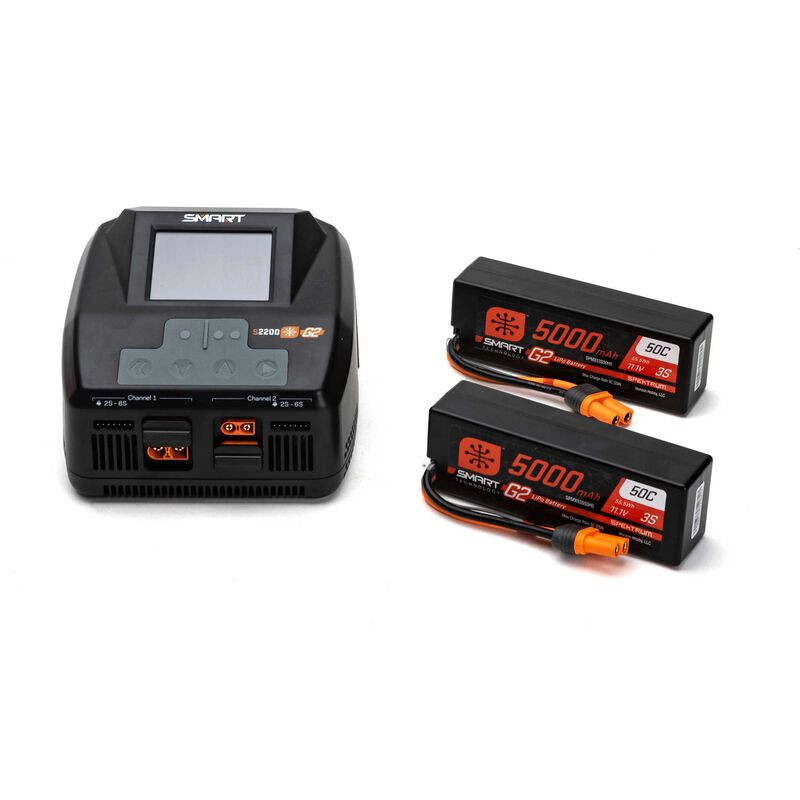

The Smart G2 Powerstage bundle is a one-box solution for vehicles requiring top performance. Designed with the simplicity of Smart G2 Technology, this bundle includes (2) 5000mAh 3S 50C Smart G2 LiPo Batteries, and (1) S2200 Smart G2 Dual Port AC Charger.
In The Box
- (2) Spektrum 5000mAh 3S 11.1V 50C Smart G2 LiPo Battery Hardcase, IC5
- (1) Spektrum S2200 Dual Port AC Smart G2 Charger, 2x200W
SPEKTRUM SMART G2 BATTERY
Drivers enjoy even more Smart advantages when using Spektrum™ Smart G2 50C LiPo batteries to power their vehicles. "Generation 2" features make these LiPo packs — featuring a 50C continuous discharge rating for high performance and longevity — even simpler and safer to use together with your Smart charger.
For example, Spektrum™ Smart G2 technology makes it much easier to balance charge your LiPo batteries. Balancing information travels through the unique data wire of each Smart G2 battery's innovative IC3® or IC5® connector. As a result, only a single connection is needed — no separate balance lead is required.
Smart G2 batteries come from the factory programmed to discharge automatically to a safe storage voltage of 3.90V after 72 hours of inactivity. The benefits include longer battery life, better performance over the life of the pack, and the peace of mind that comes from knowing your Smart battery is maintenance-free. G2 batteries also offer a storage discharge rate that's three times faster than the previous G1 Smart batteries. Learn more about Smart Technology here: www.spektrumsmart.com
Key Features:
- Simpler and safer to use
- Powerful 50C continuous discharge rating to deliver high performance and longevity
- Balance charge through the IC5® connector data wire — with only one connection, no balance lead required
- Faster Auto Discharge at up to 1.5A to safe storage voltage for long
- Integrated microchip stores unique parameters for each battery
- IC5® connectors are also compatible with EC5™ styles
SPEKTRUM SMART CHARGER
With up to 200W power per channel or 380W on one channel for fast charging, plus the ability to charge batteries on either the IC3® or IC5® integrated output ports, the S2200 charger delivers a versatile and truly hassle-free charging experience. The S2200 charger works with virtually any RC battery and is backwards compatible with EC3™ and EC5™ connectors. Use it together with Smart G1 or G2 batteries and you'll be amazed by its incredible functionality and performance.
The S2200 Smart G2 AC Charger makes battery charging the easiest it has ever been. Its Auto Charge feature recognizes your Smart battery's parameters, such as chemistry type and charge rate, and begins safe, correct charging automatically when the charge lead is connected. A clock on the charger's screen counts down the time until your Smart battery is fully charged and ready to use.
Balancing Smart G2 batteries is just as simple. The S2200 charger will balance your Smart G2 LiPo packs through the same, single IC connection used for charging. No separate, confusing balance leads are required.
The S2200 Smart G2 AC Charger's updated, improved user interface features fresh, intuitive menus, icons, and navigation tools. Its clear, easily understandable indicators of Smart battery history and performance provide the information you need to make the best decisions about your batteries when putting gear together for a day at the field or track.
USB input and output ports enable you to charge secondary devices and to update the charger's firmware so you always have the latest version. The S2200 Smart G2 AC Charger also includes an ON/OFF switch, cooling fan, detachable power cord, and sleek case with rubber grips that fits perfectly on your workbench and in your pit or field bag.
Product Specifications
| Amp Meter | Yes |
| Battery Temperature Monitoring | Yes |
| Battery Type | LiPo (3.7V per cell) |
| Charge Protection Circuitry | Yes |
| Discharge | 0.1 - 1.5A |
| Display | 2.8" LCD |
| Hard Case | Yes |
| Input Voltage | 100 - 240V AC |
| Integrated Balancing | Yes - Internal Balancer & Internal Adapter |
| Low Input Voltage Protection | Yes |
| Maximum Burst Discharge Rate | 20A |
| Maximum Continuous Discharge Rate | 1.5A |
| Normal/Standard Charge Rate | 0.1 - 20.0A |
| Number of Cells | 1 - 6S LiPo, LiIon, LiFe, 1-16 cell NiMH, NiCd, 1-12 cell Pb |
| Output | 2 x 200W, or 380W on one channel |
| Output Connector | IC3 and IC5 selectable |
| Over Current Protection | Yes |
| PC Connectivity | Yes |
| Peak Detection | Yes |
| Product Height | 4.13" (105 mm) |
| Product Length | 5.7" (145 mm) |
| Product Weight | 37.7oz (1070g) |
| Product Width | 5.67" (144 mm) |
| Programmable | Yes |
| Reverse Polarity Protection | Yes |
| Safety Timer | Yes |
| Selectable Charge Rate | Yes |
| Short Circuit Protection | Yes |
| Software Updates | Yes |
| Technology | Smart |
| Thermal Protection | Yes |
| Voltage Meter | Yes |
