Product Description

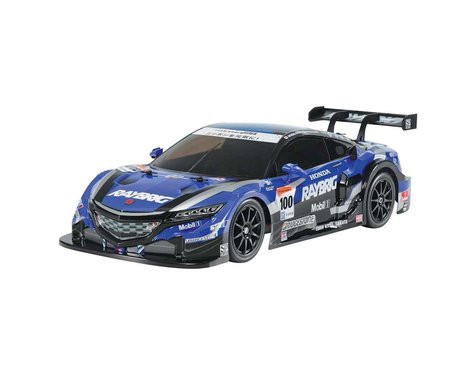

The Tamiya Raybrig NSX Concept-GT TT-02 1/10 4WD Electric Touring Car Kit recreates the full sized NSX Concept-GT. This car was used by Team Kunimitsu in the GT500 class of the Japanese 2014 Super GT race series. The carefully molded polycarbonate body expertly recreates the low-nosed form of the car, with complex front and rear end. Separate parts are included to recreate the unique side mirrors and wing. Stickers are included to depict markings, logos, front grille and lights found on the full sized model. This accurate body shell is placed on the proven TT-02 4WD chassis.
TT-02 Chassis:
The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to give excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports.
NOTE: Finished kit shown in photos is for illustrative purposes only. See needed to complete list below for a list of items required to complete the model.
Features:
- Adjustable Gear Ratio
- Body Stickers Included
- Fully independent double wishbone
- Includes 540 torque tuned motor
- Separate parts are included to recreate dynamic rear wing and unique door mirrors
- 10-spoke black wheels
- Body markings and masking stickers for use when painting the model
- Includes Tamiya TBLE-02S ESC (electronic speed control) Capable of running sensor brushless motors and brushed motors alike. (21.5 Turn BL motor limit) (23 Turn brushed motor limit).
Specifications:
Scale: 1/10
Scale: 1/10
Bearings: Plastic bushing
Body Material: Polycarbonate
Wheelbase: 257mm
Motor: 540-brushed type
Drive Type: 4WD
Chassis Material: ABS Plastic
Chassis Type: TT-02
Construction Type: Assembly kit
Differential Type: Gear
Shock Dampener: Friction type
Terrain Use: On-Road
Needed to Complete:
- 2-Channel radio
- Steering servo
- 7.2V-7.4V battery pack
- Compatible charger
- Polycarbonate paint for body
