Product Description
- Computer-Optimized Supercar Body
- Large 1/7 scale size for increased stability
- Thick 1 mm polycarbonate body with high-impact ProGraphix® paint
- Functional aerodynamics
- New front splitter design with channels to hold the body in place
- High-downforce canards for high-speed stability
- New high-downforce rear wing for improved balance
- NACA motor cooling duct with rear hot air vent
- Rigid foam bumpers maintain body shape at speed
- Extreme Power System
- 100+ mph capable with two 3s LiPo batteries and included accessories
- 0-60 mph in 2.3 seconds and 0-100 mph in 4.9 seconds
- Mamba Monster Extreme ESC by Castle Creations
- 6s LiPo capability
- Integrated capacitor bank
- Low-Voltage LiPo protection
- Traxxas Big Block 1717 brushless motor
- 1650 Kv
- Finned can design for improved cooling
- Oversize premium bearings
- Largest motor ever fitted to a Ready-to-Race® Vehicle
- Traxxas Stability Management® (TSM)
- Improves straight line acceleration and braking
- Never dulls throttle or slows the car
- Adjusts from off to 100% assistance from the transmitter
- TQi™ 2.4 GHz High Output Radio System with Wireless Module
- Includes 6511 Traxxas Link Wireless Module
- TQi 2-channel transmitter
- Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
- Programmable multi-function knob
- Adjustable steering and throttle percentage (dual rates)
- Adjustable steering and throttle sensitivity (exponential)
- Adjustable steering and throttle end points
- 5-channel micro receiver (6533) with fail-safe security
- Patented waterproof receiver box with easy-access plug
- Installed telemetry sensors for real-time speed, RPM, and voltage data
- Steering
- Digital high-torque ball bearing 2075 servo
- Metal bellcrank with integrated cam-style servo saver
- Suspension
- Oil-filled GTR shocks with height-adjustable threaded aluminum bodies
- White powder-coated performance-tuned springs
- Blue-anodized 6061-T6 aluminum caster blocks
- Blue-anodized 6061-T6 aluminum steering blocks
- Blue-anodized 6061-T6 aluminum axle carriers
- Blue-anodized 6061-T6 aluminum shock towers
- Heavy-duty 4 mm steel turnbuckles
- Impact-resistant heavy-duty suspension arms
- Oil-filled GTR shocks with height-adjustable threaded aluminum bodies
- Drive System
- Machined aluminum motor mount
- Precise gear mesh settings
- Ultimate strength
- Efficient heat transfer
- Steel CV Driveshafts
- Oversize 6 mm axles
- Silicone dust boots
- Hardened steel shafts
- Extruded-aluminum center driveshaft
- Machined aluminum motor mount
- Transmission
- Large Mod-1 pinion and spur gears
- Exclusive Cush Drive™ absorbs drivetrain shocks
- Differentials
- Sealed silicone-filled limited-slip design
- Heavy-duty reinforced carrier
- 5 mm output shafts
- Chassis
- 3 mm 6061-T6 aluminum upper and lower chassis plates
- Dual scalable snap-lock battery compartments
- Keys into front and rear bulkheads for completely smooth undertray
- Wheels and Tires
- Heavy-duty 17 mm splined blue-anodized aluminum hex hubs and wheel nuts
- 118+ mph-rated belted slick tires with contoured foam inserts
- Contoured, molded tire inserts
- Large 2.8″ black chrome Split-Spoke wheels with keyed 17 mm hubs
- High-quality sealed ball bearings
- Precision Hex Hardware
- Hex hardware with rust-resistant black oxide coating
- Requires Battery and Charger (Sold Separately)

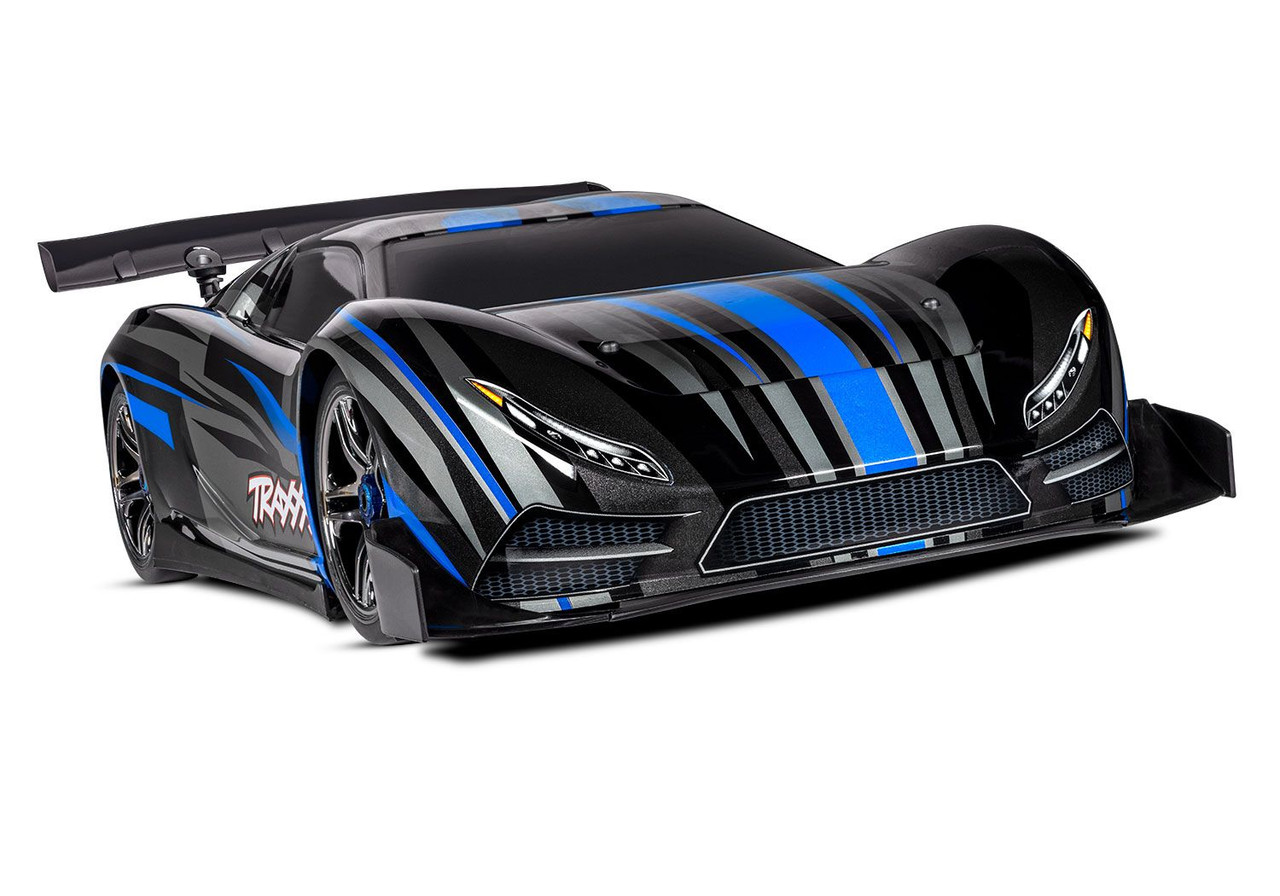

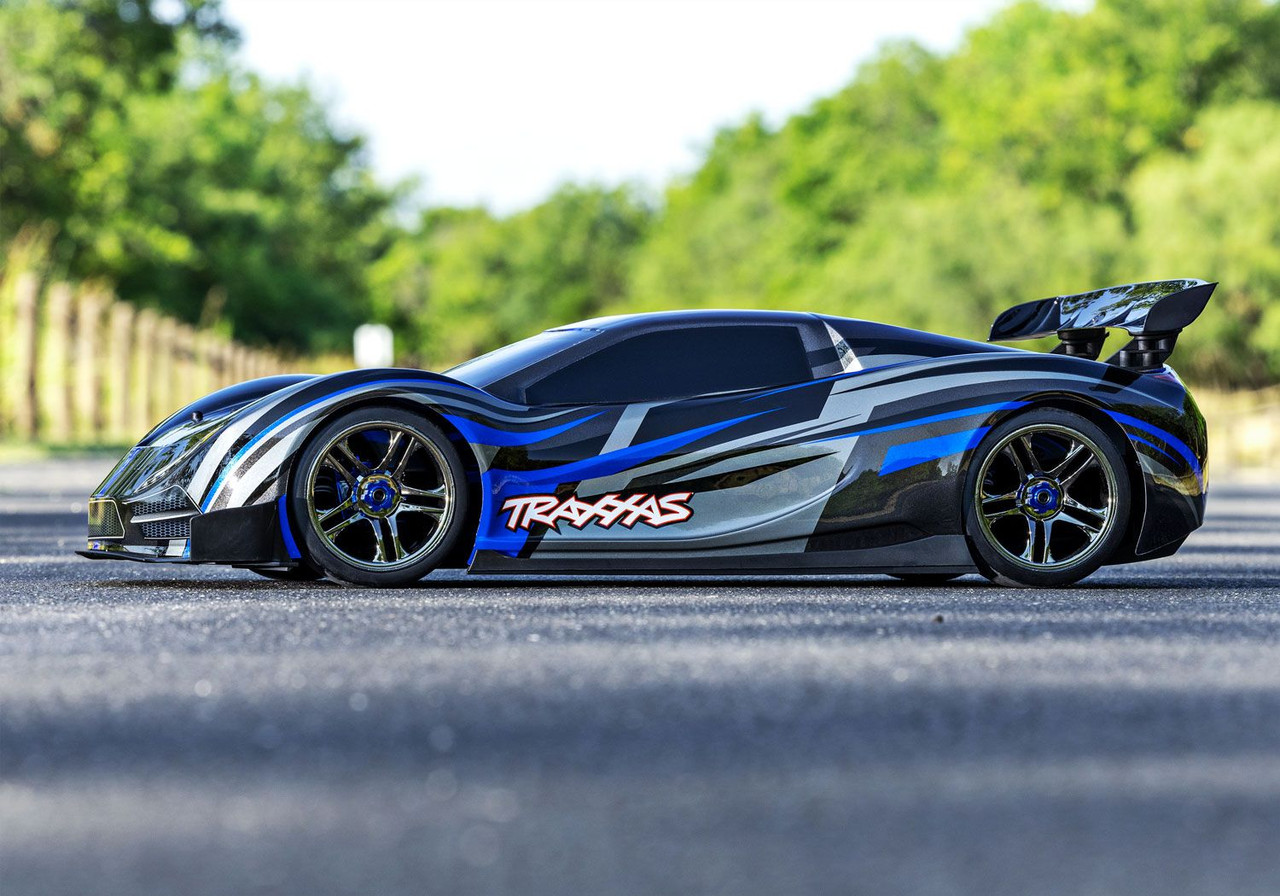

MODEL 64077-3: XO-1® Fully-assembled 1/7 scale AWD supercar, Ready-To-Race®, with Traxxas Stability Management (TSM)®, TQi™ 2.4 GHz radio system with Traxxas Link™ Wireless Module, Castle Mamba Monster Extreme ESC, Traxxas Big Block motor, and ProGraphix® painted body.
What’s In The Box:
- XO-1 Supercar with Mamba Monster Extreme ESC and Traxxas Big Block motor
- TQi™ 2.4 GHz radio system with installed Traxxas Link wireless module
- Optional 34-tooth top speed gear
What You’ll Need:
- Batteries and Charger
XO-1 requires dual 2s or dual 3s LiPo batteries. Use the Dual 3s Completer Pack 2990
- Mobile Device Running Free Traxxas Link App
Get real-time telemetry on your mobile device with the app and unlock top-speed mode for 100+ mph performance.
- AA Alkaline Batteries
Four AA alkaline batteries for the transmitter.
| Name: | XO-1® |
|---|---|
| Type: | On-Road Car |
| Speed: | 100+ mph |
| Skill Level: | 10 |
| Scale: | 1/7 |
| Weight: | 8.6 pounds (3.9 kg) |
| Length: | 27 inches (686 mm) |
| Width: | 13 inches (329 mm) |
| Front Track: | 11.81 inches (300 mm) |
| Rear Track: | 11.81 inches (300 mm) |
| Height: | 5 inches (128 mm) |
MOTOR SPECS
| Name: | Traxxas Big Block |
|---|---|
| Type: | 1650 Kv sensorless brushless |
| Weight: | 23.44 ounces (665 g) |
| Length: | 3.5 inches (89 mm) |
| Diameter: | 1.81 inches (46 mm) |
| Shaft Size: | 5 mm |
| Connector Type: | 6.5 mm bullet |
ESC SPECS
| Name: | Castle Creations Mamba Monster Extreme ESC |
|---|---|
| ESC Type: | Brushless |
| Case Size: | 6 mm W x 85 mm D x 43 mm H |
| Weight: | 4.27 ounces (121 g) |
| Motor Connectors: | 6.5 mm bullet |
