Product Description

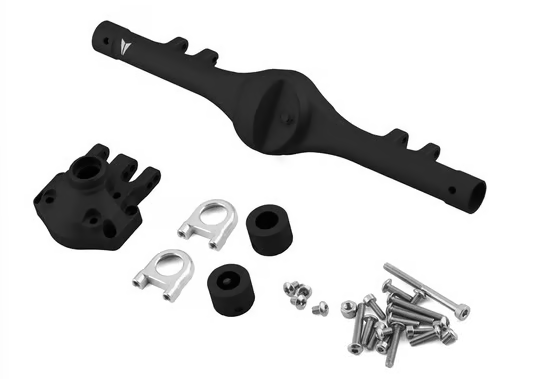

The Vanquish Products F10T Aluminum Rear Axle Housing offers another high quality scale axle option. Utilizing the stout Vanquish AR44 gear sets and spools the F10T axle housings are an easy upgrade for VS4-10 kits equipped with straight axles such as the Origin, Pro and Phoenix (Straight Axle version). Adding to the scale realism is the removable third member with one piece retainers. This creates a strong and durable housing capable of taking some serious abuse. The F10T features adjustable upper link positions, double shear shock mounts and rear bearing retainer caps eliminating the need for lockouts. This axle is packed with scale features and is built to last. Using high quality materials, thorough engineering and next level attention to detail, is exactly what you would expect from Vanquish Products and the F10T axle housings do not disappoint.
NOTE:
- Not for use with Vanquish Products Brass Pivot Balls (.300" width)
- Due to the nature of the AR44 gear design, proper shimming of the pinion gear may be required for optimal results.
Features:
- Machined in the USA
- Made from high quality domestic produced aluminum
- Scale import truck style axle housing
- Adjustable rear upper link positions
- Comes with One Piece Bearing Retainers Double shear shock mounts for S8E offset pivot balls allowing for more shock tuning adjustment
- Rear Bearing Retainer Caps utilized to eliminate the need for lockouts and provide a more scale appearance
Includes:
- (1) F10T Rear Housing (Black)
- (2) Bearing Retainers
- (1) F10T Third Member
- (2) Axle End Caps
- Required hardware
- Instructions
Needed to Complete:
- Hexes
- Hex pins
- Bearings
- Axle Shafts
- Ring and Pinion or Locker
- (2) 7x14x3.5mm
- (1) 5x14x5mm
- (3) 5x11x4mm
Recommended Completion Items:
- Vanquish Products VS4-10 Chassis Kit (VPS10130).
- Incision S8E 90mm Shocks (Offset pivot ball at shock mounting location) (INCIRC00501).
- Incision Rod Ends and Pivot Balls (.280" width pivot balls).
- Vanquish Products 6-Hole AR44 Gear set (VPS08330).
- Vanquish Products 6-hole AR44 Spool (VPS08070).
- Vanquish Products Rear axle shafts (VPS08082).
