Arrma

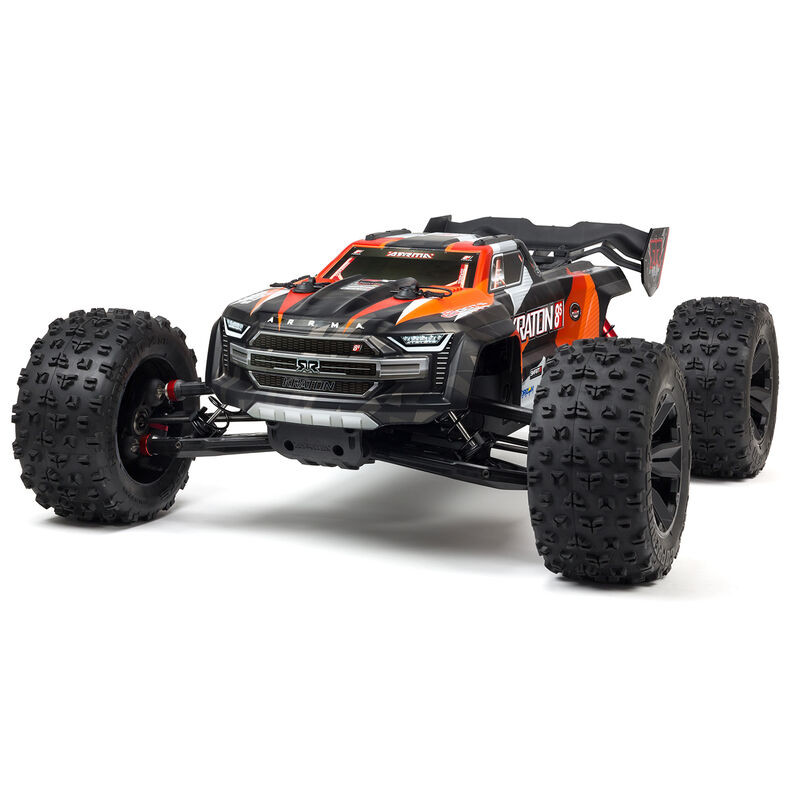

1/5 KRATON 4X4 8S BLX Brushless Speed Monster Truck RTR, Orange ARA110002T2

MSRP:
Was:
Now: $969.99
(You save )
(No reviews yet) Write a Review

Description


ARRMA KRATON 1/5 8S BLX 4WD Speed Monster Truck RTR

Introduction

Experienced bashers can shred big-time with the 1/5 scale ARRMA® KRATON™ 8S BLX 4WD Speed Monster Truck. DESIGNED FAST and DESIGNED TOUGH, it’s ready-to-run out of the box and comes with nearly everything you need — just add your preferred batteries and charger. The supplied Spektrum™ DX3 3-channel transmitter and SR6100AT AVC® (Active Vehicle Control®) receiver take full advantage of the innovative telemetry technology found in the included Spektrum™ Smart Firma™ brushless motor and ESC. Download the free Spektrum™ Dashboard App to your mobile device to view motor RPM, ESC temperature, receiver voltage, drive pack voltage and more data in real-time. Dial-in extra stability with the radio’s AVC® system to carve corners and nail jumps without letting up on the throttle. The KRATON 8S BLX 4WD is capable of 55+ MPH speeds in optimum driving conditions using an 8S LiPo (2 x 4S LiPo batteries) and optional pinion gear (available separately). The speed potential is amazing — and you’ll be able to use it all.

Features

  • Laser-etched aluminum anodized chassis plate
  • Strong composite chassis side pods
  • Triangular structured center brace system for maximum durability
  • Oil-filled adjustable shocks with massive 20mm bore
  • Ultra-thick composite front and rear shock towers
  • Easy-access 3-bolt sliding motor mount for quick motor removal
  • Aluminum motor mount and hubs
  • Heavy-duty drivetrain
  • Durable steel driveshafts throughout
  • Easy-access front and rear diff module design
  • All-metal diff outdrives and gearbox internals
  • Easy-access waterproof electronics module
  • Heavy-duty dual spring servo saver
  • Multi-split spoke wheels
  • Durable wheel hubs for increased strength
  • Multi-terrain dBoots® COPPERHEAD™ 2 SB tires
  • Ultra-tough truck body and decals
  • High downforce wing
  • Integrated internal body protection tower
  • Spektrum™ DX3 3-channel 2.4GHz Radio with SR6100AT AVC® Receiver
  • Spektrum™ Firma™ 160A Smart ESC
  • Spektrum™ Firma™ 1250Kv Brushless Motor
  • Spektrum™ S905 Metal-Geared Digital Servo
  • 2-year limited warranty

Overview

Bigger than big and engineered for brute power and toughness, the ARRMA® 1/5 scale KRATON™ 8S BLX 4WD Speed Monster Truck takes your bashing ability to the next level. Its metal-reinforced design lets you blast up, over, and through bruising obstacles without worry. Metal shafts, turnbuckles and outdrives, plus all-metal internal gears, give the drivetrain and suspension system unstoppable strength. The anodized aluminum chassis plate features composite side pods and a triangular center brace for maximum durability. Ultra-thick composite front and rear shock towers hold massive 20mm bore, oil-filled adjustable shocks that soak-up bumps and jolts.

The power that sends the KRATON™ 8S BLX 4WD Speed Monster Truck charging easily over challenging terrain comes from its 1250Kv Spektrum™ Firma™ brushless motor. The torque and acceleration is incredible. For quick access, the motor is mounted with three bolts onto a sliding aluminum mount.

The waterproof electronics module — also designed for easy access — houses and protects more innovative Spektrum™ equipment. ARRMA® has equipped the KRATON™ 8S BLX 4WD Speed Monster Truck with a state-of-the-art Firma™ Smart 160A ESC and SR6100AT AVC® (Active Vehicle Control®) receiver. Innovative connectivity enables all the Smart electronics to send valuable telemetry data to the included Spektrum™DX3 3-channel transmitter without requiring multiple wires, sensors, modules and links. Just download the free Spektrum™ Dashboard App to your mobile device, which connects wirelessly via Bluetooth to the DX2E transmitter. Then you can view motor RPM, ESC temperature, receiver voltage, drive pack voltage and more data in real-time.

The ultra-tough KRATON™ truck body with high-downforce wing is available factory trimmed, painted and decaled in two striking color schemes. A center protection tower on the chassis interfaces with the roll cage for increased body durability. It all rides on multi-split spoke wheels with strong, durable aluminum wheel hubs, and multi-terrain dBoots® COPPERHEAD™ 2 SB tires with a tread pattern designed for extreme, all-terrain action.

Needed to Complete
  • (2) 4S LiPo Batteries (SPMX50004S50H5 Spektrum™ Smart 14.8V 5000mAh 4S 50C LiPo Hardcase Recommended)
  • Compatible Charger (SPMXC1010 Spektrum™ Smart S2100 AC
  • Charger 2X 100W Recommended)
  • LiPo Charging Bag
  • (4) AA Batteries
What's in the Box?
  • (1) KRATON™ 8S BLX SPEED Monster Truck
  • (1) Spektrum™ DX3 3-channel 2.4GHz Radio with SR6100AT AVC® Receiver
  • (1) Spektrum™ Firma™ 160A Smart ESC
  • (1) Spektrum™ Firma™ 1250Kv Brushless Motor
  • (1) Spektrum™ S905 Metal-Geared Digital Servo [40kg-cm; 556 oz-in @ 7.4V]
  • (1) Product Manual



Scale



ALL-METAL DRIVETRAIN
ALL-METAL DRIVETRAIN

ARRMA tough gears, diffs, outdrives and driveshafts.



FULL METAL STRONG
FULL METAL STRONG

Suspension arm end caps, pivot balls, steering plates.



SLIDING MOTOR MOUNT
SLIDING MOTOR MOUNT

For easy meshing and quick removal.



FEATURE_TITLE
MASSIVE ALLOY SHOCKS

24mm diameter bodies.



BODY PROTECTION TOWER
BODY PROTECTION TOWER

Interfaces with roll cage for enhanced body durability.



TRIPLE CENTER BRACE SYSTEM
TRIPLE CENTER BRACE SYSTEM

For maximum chassis durability.



Chassis



BEAUTIFULLY LASER ETCHED CHASSIS PLATE
BEAUTIFULLY LASER ETCHED CHASSIS PLATE





SPLIT-SPOKE WHEELS & MULTI-TERRAIN DBOOTS COPPERHEAD 2 SB TIRES
SPLIT-SPOKE WHEELS & MULTI-TERRAIN DBOOTS® COPPERHEAD 2 SB TIRES





STAND OUT FROM THE REST
STAND OUT FROM THE REST

Punchy from a distance, tonal detailing close-up.



INTEGRATED ELECTRONICS MODULE
INTEGRATED ELECTRONICS MODULE

Combined ESC, servo and receiver module.



SPEKTRUM Smart TECHNOLOGY INCLUDED
SPEKTRUM™ SMART TECHNOLOGY INCLUDED





8S POWER MODULE
8S POWER MODULE





AVC INCLUDED
    SPEKTRUM Active Vehicle Control system
AVC® INCLUDED SPEKTRUM™ ACTIVE VEHICLE CONTROL™ SYSTEM

For some help when things get loose.



OVERSIZED BATTERY TRAYS
OVERSIZED BATTERY TRAYS

Accommodate a wide range of battery sizes.



SPEKTRUM 2.4GHz DX3 3-CHANNEL RADIO & SR6100AT RECEIVER
SPEKTRUM 2.4GHz DX3 3-CHANNEL RADIO & SR6100AT RECEIVER



  • DSMR® Technology for superior range, response and interference resistance
  • 3-Channel operation (Steering, Throttle, AUX1)
  • Smart Technology ready with the included SR6100AT Receiver
  • New styling focused on ergonomics
  • Foam covered steering wheel for better control
  • Convenient voltage level indicator for Smart batteries
  • Supports the on-demand traction control of AVC® technology
  • Servo reversing and trim dial
  • 3-position throttle limiter



SERVO
SERVO



  • Full-size 1/5th scale servo
  • Strong, metal gears used throughout
  • Waterproof and dustproof case
  • 15 tooth output spline
  • Torque: 38kg-cm @6V
  • Speed: 0.20sec/60degree @6V
  • Dimensions: 2.36 x 1.14 x 2.17" (60 x 55 x 29mm)



ESC
SPEKTRUM™ FIRMA™ 160 AMP BRUSHLESS SMART ESC



    • Waterproof and dustproof design
    • 160A, 8S LiPo ready (3S*, 4S*, 6S* and 8S LiPo compatible)
    • Spektrum® Smart Technology
    • Fitted with reliable IC5™ connectors (EC5™ compatible)
    • Integrated fan for reduced heat during extreme running
    • High quality 10awg wires
    • Low voltage cut off and thermal overload protection
    • User programmable punch, brake, BEC, LVC sensitivity, reverse speed and motor timing settings
*3S, 4S and 6S are not recommended for the KRATON 8S BLX model



SPEKTRUM FIRMA 4685 1250Kv BRUSHLESS MOTOR
SPEKTRUM™ FIRMA™ 4685 1250Kv BRUSHLESS MOTOR



  • Beautifully etched aluminum can
  • 4-pole construction for smooth and consistent power
  • 6.5mm gold bullet connectors for reliable and efficient connection
  • Black anodized aluminum motor can for increased heat dissipation
  • Super strong 5mm shaft
  • Groove at the end of the motor shaft allows the installation of a pinion retaining E-Clip





ARRMA KRATON 1/5 8S BLX 4WD Speed Monster Truck RTR

Product Specifications

Specs

Water-Resistant Yes
Tire Tread Copperhead2
Vehicle Type Monster Truck
Outer Diameter 7.99 in (203mm)
Pinion 17T
Wheelbase 19.33" (491mm)
Wheel Type MT, 24mm hex
Wheel Width 3.54" (90mm)
Servos Spektrum S905 high torque metal gear digital heavy-duty steering servo, 500 oz-in (36 kg-cm), 0.20 sec speed at 6V
Shock Type Oil-filled coil-over
Speed Control Included
Spur Gear 47T
Suspension Independent
Technology Smart Technology
Gear Pitch 1.0 Module
Internal Gear Ratio 9.06
Max Battery Dimensions 5.47 x 1.8 x 1.4" (139 x 46 x 38mm)
Motor Size 4985, 1250Kv
Motor Type Brushless
Product Height 10.47" (266mm)
Product Length 29.92" (760mm)
Product Weight 24.2lbs (11kg)
Radio Included
Rear Track 23.70 in (602mm)
Receiver Included
Scale 1/5
Final Drive Ratio 25.06:1
Front Track 23.70 in (602mm)
Power Type Electric
Differential Bevel gear
Drivetrain 4WD
Chassis 6061-T6 aluminum 0.16" (4mm) thick
Completion Level Ready-To-Run
Charger Sold Separately
Approximate Assembly Time Less than 1 Hour
Ball Bearings Full set
Battery Sold separately, Two Spektrum 4S 5000mAh50C Smart LiPos w/IC5 connector recommended
Body Painted decaled and trimmed
Brakes Integral with ESC
Bushing Material Metal
